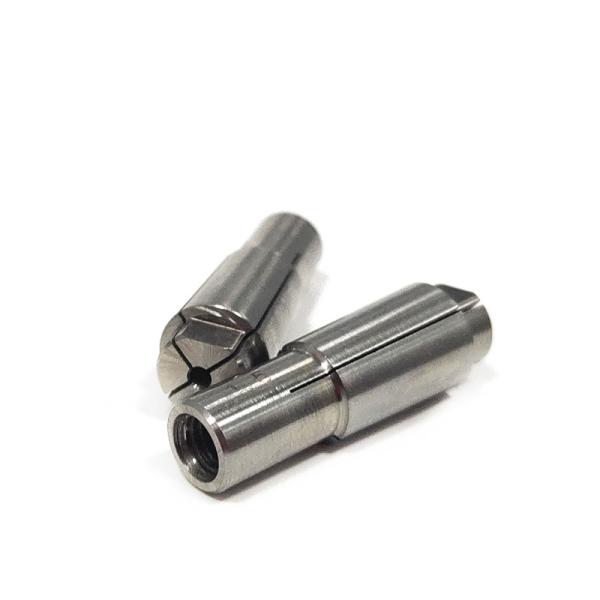

High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
Specifications
Brand Name :
ISOCHI
Model Number :
CR2000
Certification :
SGS
Place of Origin :
CHINA,JiangSu
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 Piece/Pieces per Week
Delivery Time :
2 work days
Packaging Details :
plastic case+ bag+carton
Material :
Stainless Steel
Color :
Silver
Structure :
Spring Clamp
Precision :
1/8”
Application :
Spindle 420/480/820/880
Application Machine :
PCB Excellon Routing Machine
Description

High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry

Specifications:

Product Name
High Precision Spindle Parts Router Collet
Material
Stainless Steel
Certificate
SGS
Application PCB Excellon Routing Machine/Spindle 420/480/820/880
Used
Spindle parts

What is collet?


Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.

We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using ISOCHI collets will enhance the performance of your spindle and extend their working life.

Collet Maintenance:

Collet Maintenance - How Often?

It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.

ISOCHI suggest the following maintenance intervals:-

Removable collets every 100 operating hours

Bonded collets every 24 operating hours

The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.

Please contact ISOCHI if you would like advice on your particular situation.

Collet list and application spindle:

Model PN Application other Spindle
D1331-17 17593;17809;20924 D1201-02 ,06 ,19 , 20 ,21 ,23,27,30,31,33 ,34,36
D1263-01,03 ,04 ,06 ,07 ,08 ,09
D1199-03 ,D1210 ,ABW110,D1131
D1531-01 ,02A,04 ,06 ,09A
D1331-01 ,02,03 ,07 ,08 ,09 ,10 , 13
D1331-17 ,19 ,20A,21 ,24 ,27 ,28 ,38
D1331-26 38431;34381 D1404 ,D1502 ,D1686-01 ,02 ,03 ,04
D1331-25 ,26 ,29 ,31
D1331-36 38730/39730 D1331-36
D1331-41 37462 D1331-08,24,30,32,41,42,44
D1201,SM170, D1531-08,42;MCT150 ,160 ,170
D1331-47 41928 D1331-22 ,1331-47

Product show:

High Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB IndustryHigh Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB IndustryHigh Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB IndustryHigh Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB IndustryHigh Precision Spindle Parts CR2000 Router Collet VCR-820 QD820 For PCB Industry
