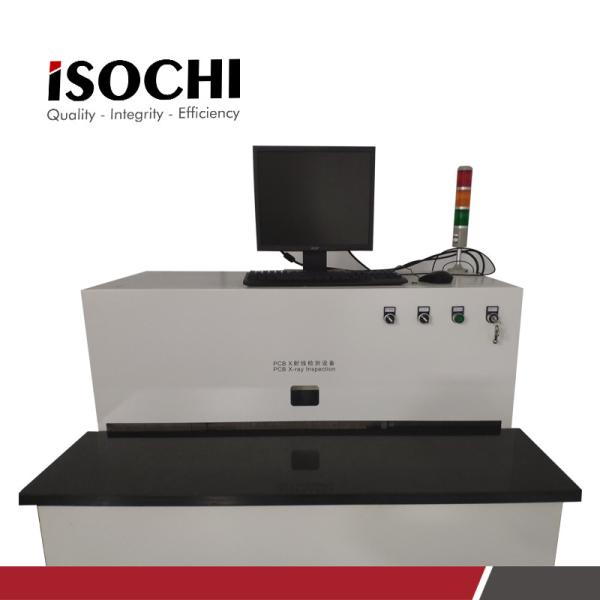

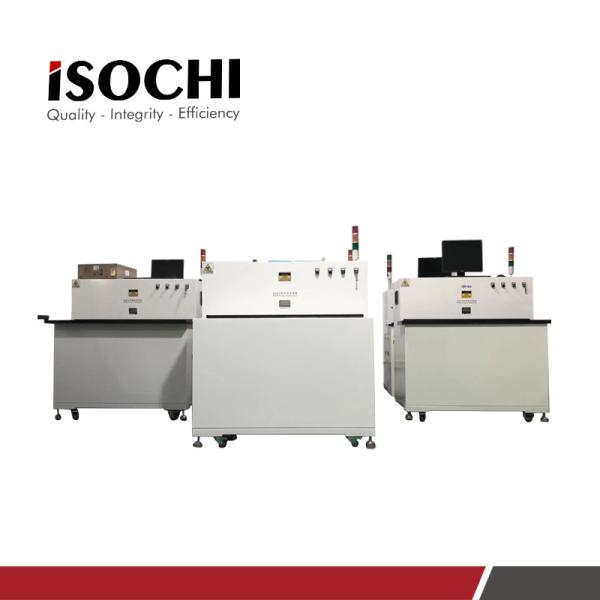

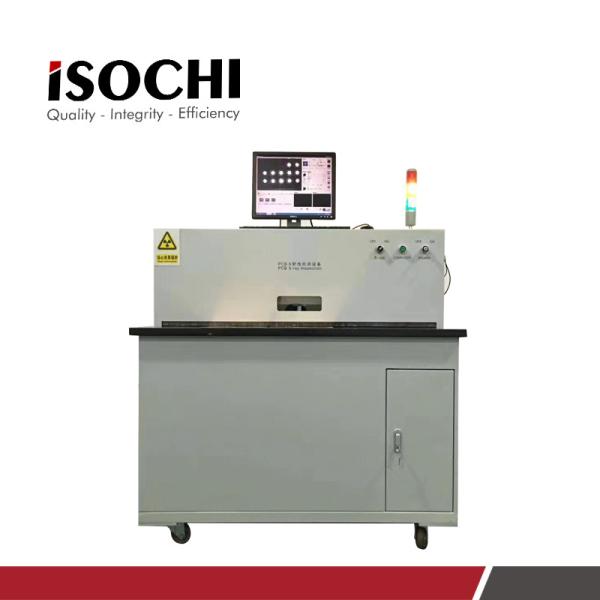

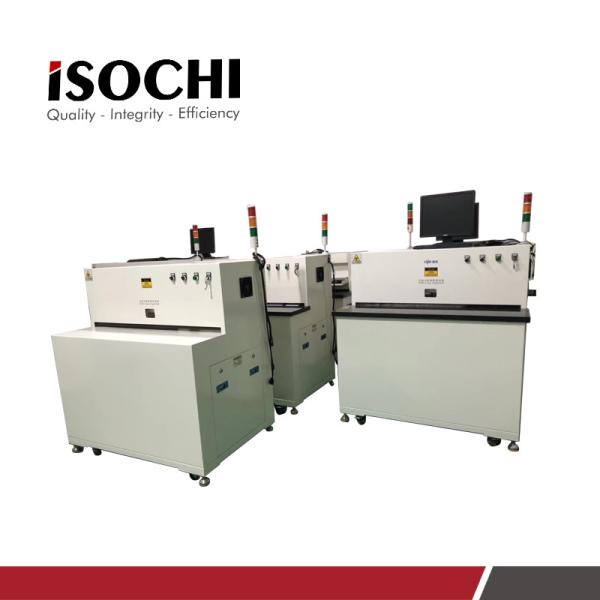

Super Sensitive PCB X Ray Inspection Machine , PCB Inline X Ray Machine
Super Sensitive PCB X Ray Inspection Machine , PCB Inline X Ray Machine
Super Sensitive PCB X Ray Inspection Machine , PCB Inline X Ray Machine
Super Sensitive PCB X Ray Inspection Machine , PCB Inline X Ray Machine
Super Sensitive PCB X Ray Inspection Machine , PCB Inline X Ray Machine
Super Sensitive PCB X Ray Inspection Machine , PCB Inline X Ray Machine
Super Sensitive PCB X Ray Inspection Machine , PCB Inline X Ray Machine
Super Sensitive PCB X Ray Inspection Machine , PCB Inline X Ray Machine
Specifications
Brand Name :
ISOCHI
Model Number :
RYT-1000
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
$22959
Payment Terms :
T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
in stocks
Packaging Details :
Standard wooden case or according to customers' requirement
Model No.: :
RYT-1000
Space Usage: :
1.8m × 1m
Air temperature: :
+5~+40℃
Power: :
220V 50/60Hz
Light Pipe Type: :
Closing pipe
Maximum tube voltage: :
50kV
Windows: :
Φ25mm
Monitoring Area: :
1060 mm *800mm
Weight: :
200kg
Description

Super Sensitive PCB X Ray RYT 1000 Inspection Machine Detection for Printed Circuit Board Checking CNC Manufacturing

Product Characteristics:

① Modular mechanical structure for easy maintenance

② Various software functions such as measurement and measurement

③ 10-20 times optical zoom for micro hole detection

Production Function:

RYT-1000 is mainly used for the analysis and measurement of the pre-lamination process and the post-drilling process in the PCB production process of the multi-layer circuit board. Accurate measurement and analysis of point-to-point, point-to-line, radius, diameter, concentricity, etc., to find process errors in advance, to avoid batch quality problems.

Working Conditions:

Space Usage: 1.8m × 1m
Air temperature: +5~+40℃
Relative humidity: ≤80%
Power Supply: 220V 50/60Hz

Product Datas:

Light Pipe Type Closing pipe
Maximum tube voltage 50kV
Maximum tube current 1.0mA
Focus size 0.1 *0.1mm
Detector High - resolution X - ray CCD camera
Focus size resolution 20lp/mm
Windows Φ25mm
Magnification 10-15-20 times
Monitoring Area 1060 mm *800mm
Machine Body Size H1600 mm *W700 mm *L1200mm
Weight 200kg
Power supply AC220V 50/60Hz
Radiation dose ＜1μSv/h

Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

KUNSHAN SOCHI ELECTRONICS CO.,LTD

Our main service targets are automotive electronics, semiconductor and PCB industry customers,such as TTM,APEX,ATS.We have 20 years of production experience in the PCB industry.

Our company's main products are PCB equipment; PCB CNC drilling machine and milling machine parts; repair and maintenance of drilling /molding machine; maintenance of spindle and various chip boards; production and processing of automobile molds and parts.

We have a technical team of excellence, advanced CNC processing equipment, testing equipment to ensure that our product quality meets and meets customer requirements.
