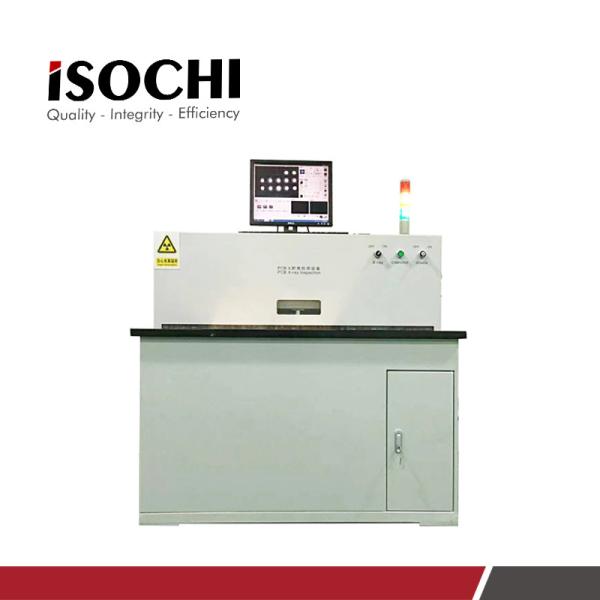

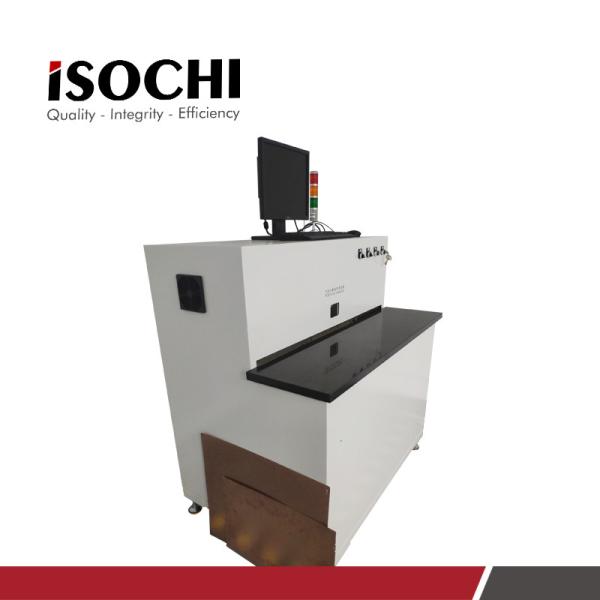

High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
Specifications
Brand Name :
ISOCHI
Model Number :
RYT-1000
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
$22969/set
Payment Terms :
T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
in stocks or
Packaging Details :
Standard wooden case or according to customers' requirement
Model No.: :
RYT-1000
Space Usage: :
1.8m × 1m
Air temperature: :
+5~+40℃
Power: :
220V 50/60Hz
Light Pipe Type: :
Closing pipe
Maximum tube voltage: :
50kV
Windows: :
Φ25mm
Monitoring Area: :
1060 mm *800mm
Weight: :
200kg
Description

High Precision PCB X Ray Inspection Machine Detection Machines used on PCB Industry

Production Function:

RYT-1000 is mainly used for the analysis and measurement of the pre-lamination process and the post-drilling process in the PCB production process of the multi-layer circuit board. Accurate measurement and analysis of point-to-point, point-to-line, radius, diameter, concentricity, etc., to find process errors in advance, to avoid batch quality problems.

Working Conditions:

Space Usage: 1.8m × 1m
Air temperature: +5~+40℃
Relative humidity: ≤80%
Power Supply: 220V 50/60Hz

Product Datas:

Light Pipe Type Closing pipe
Maximum tube voltage 50kV
Maximum tube current 1.0mA
Focus size 0.1 *0.1mm
Detector High - resolution X - ray CCD camera
Focus size resolution 20lp/mm
Windows Φ25mm
Magnification 10-15-20 times
Monitoring Area 1060 mm *800mm
Machine Body Size H1600 mm *W700 mm *L1200mm
Weight 200kg
Power supply AC220V 50/60Hz
Radiation dose ＜1μSv/h

Product Characteristics:

① X-ray tube can be selected to meet various thickness detection

② Independent research and development of high-definition imaging system, simple judgment

③ User-friendly software system, easy to operate

④ Modular mechanical structure for easy maintenance

⑤ Various software functions such as measurement and measurement

⑥ 10-20 times optical zoom for micro hole detection

⑦ Automatic start and stop function to prevent the machine from opening for a long times

Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

KUNSHAN SOCHI ELECTRONICS CO.,LTD

Our main service targets are automotive electronics, semiconductor and PCB industry customers,such as TTM,APEX,AT&S.

We have 20 years of production experience in the PCB industry.

Our company's main products are PCB equipment; PCB CNC drilling machine and milling machine parts; repair and maintenance of drilling /molding machine; maintenance of spindle and various chip boards; production and processing of automobile molds and parts.

We have a technical team of excellence, advanced CNC processing equipment, testing equipment to ensure that our product quality meets and meets customer requirements.

High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm

FAQ:

Q: Are you a trading company or manufacturer?
A: We are integrated industrial and trade enterprises.
Q: How long is your delivery time ?
A: In stocks.Or within 15 working days.
Q: What's your package?
A: Plastic bag + packing box. Set product have special kit box.
Q: Do you provide samples? is it free or extra ?
A: Yes, we can offer samples but the samples' cost and shipping cost shall be at the buyer's charge
Q. How to control the quality of your product?
A: We have our own perfect testing equipment and sophisticated detection personnel.
Q: How about the quality of your products?
A: Our company carries our "the quality first, the goods faith for this purpose", reply on advanced productions technology and equipment, follow the scientific management concept, and strive to provide qualified perfect products for client.
High Precision PCB X Ray Inspection Machine AC220V 50/60Hz 200kg Window Φ25mm
