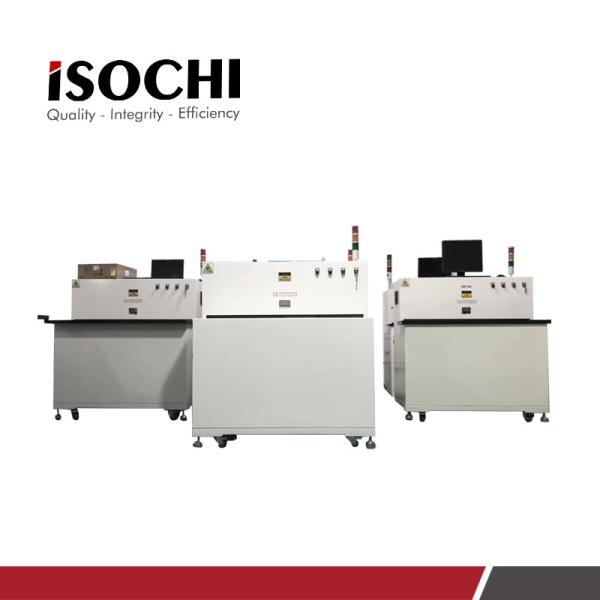

PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
Specifications
Brand Name :
SOCHI
Model Number :
RYT-3000
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
$62999-65699/set
Payment Terms :
T/T, Western Union,Paypel
Supply Ability :
10 Set/Sets per Month
Delivery Time :
in stocks or within 25 working days after receipt of customer's payment
Packaging Details :
Standard wooden case or according to customers' requirement
Model No.: :
RYT-3000
Light tube type: :
Enclosed X-ray tube
Maximum tube voltage: :
90kV
Maximum tube current: :
0.15mA
Speed: :
20 fps
Resolution: :
1176*1104
Size of loading: :
650mm*550mm（other sizes can be customized ）
Description

PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA

1.Application:

1. Mold Plastic Parts

2. Aircraft Components

3. Electrical and Mechanical Components

4. BGA Inspection

5. PCB,FPC,PCBA

6. Die Castings

7. LED

8.Tyre

2.Technical Parameters:

Project Content
Equipment Model No. RYT-3000

X-RAY transmitting tube

(HAMAMATSU,Japan)

 Light tube type Enclosed X-ray tube
Maximum tube voltage 90kV
Maximum tube current 0.15mA
The focal spot size 5um
Amplification factor Geometric multiplier: 150 system multiplier: 1000
Detector Speed 20 fps
Resolution 1176*1104
Angle of inclination ±45° incline
Cabinet Specification Size of loading platform 650mm*550mm(other sizes can be customized )

3.Main Function:

Function Advantages
X-ray tube and detector can move along the Z axis Defects below 2um can be detected
Software sets voltage and current Convenient maintenance, long service life

It can control the speed of the object carrier in the X-Y direction

 Simple operation and short training time for operators
Editable detection program Suitable for mass detection
The maximum inclination of detector is 45° Semi-automatic identification of OK/NG products
Large navigation window, click the mouse to move the object table to the point High repeatability accuracy
Can accommodate all kinds of large size samples
Allows a unique view of the sample

4.Our Features:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

5.More pictures:

PCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mAPCB Enclosed X-ray Tube Inspection Equipment 1060mm * 800mm RYT 3000 0.15mA
