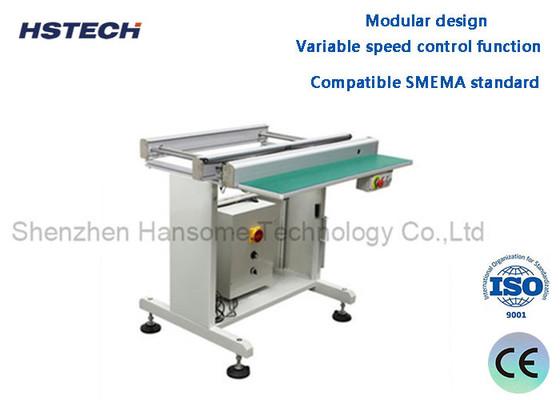

Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line
Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line
Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line
Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line
Specifications
Brand Name :
HSTECH
Model Number :
HS-460-CY
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package
Product Name :
PCB Linking Conveyor
Material :
Stainless Steel
Color :
White
Transport Belt :
ESD Flat Belt
Condition :
New
Voltage :
1P AC 110V/220V 50/60HZ
Warranty :
1 Year
After-sales Service Provided :
Online Support
Description

Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Lin

introduce:

The connection station is used for connection between SMT production lines, and can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.

The docking station generally includes: a frame, two conveyor belts that rotate in parallel on the frame, and circuit boards are placed on the two conveyor belts for transportation. The existing conveyor belts are generally fixed in position on the frame, so that the two The width of the circuit boards conveyed on the conveyor belt is limited, which is not conducive to conveying circuit boards of different sizes, making the applicability of the docking station low.

Features:

1, Modular design.

2, Iron square tube framwork, powder coating on surface.

3, Variable speed control function.

4, Sturdy structural design improves the stability of the equipment.

5, Use stainless steel screw,smooth and parallel width adjustment.

6, Compatible SMEMA standard.

Specification:

Model HS-460-CY
Power Supply AC220V or AC110V 50/60Hz
PCB Size 50*50~500*460mm
Width adjustment Hand shake
PCB Direction Left to right or right to left
Transmission Height 900 ± 20 mm
Transmission Speed 0.5-20 meters per minute adjustable
Track fixed side front side fixed( or back side fixed for option)
Machine Length 0.5M/0.6M/0.8M/1M/1.5M
Options Light,Fan,Magnnifying,Cover,Inspection

Things to note:

1. Ensure that there are no foreign objects in the transportation part, belts, pulleys and transportation guide rails to ensure smooth and smooth transportation.

2. Refuel the transmission part, rack or width-adjusting screw regularly. Refueling must be performed in the stopped state.

3. In case of power outage, turn off the main power switch of the equipment immediately.

Product Details:

Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line

Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line

Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line

Packing:

Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line

Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Line
