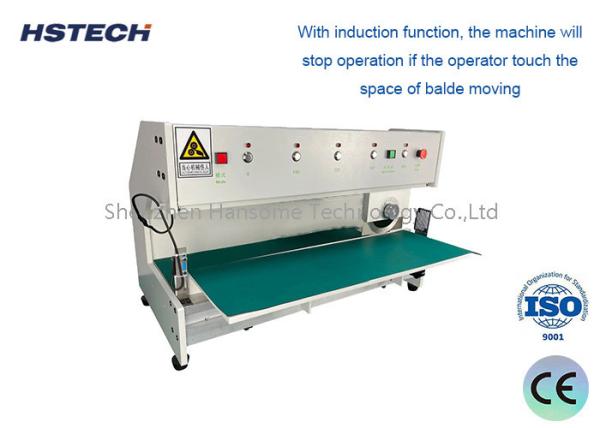

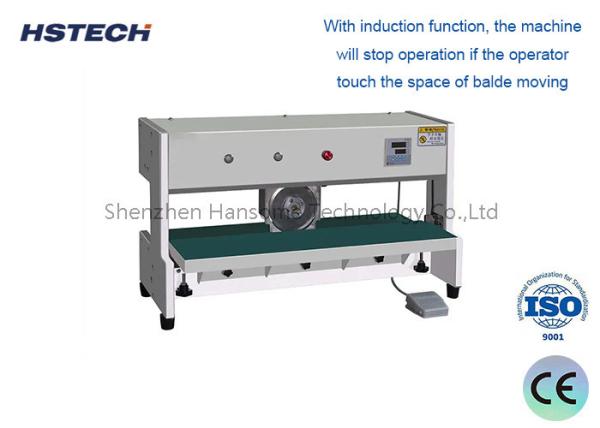

600mm Cutting Length PCB Depaneling Equipment with Light Curtain and Induct CAB Blade

introduce

PCB splitter is an electronic device specially used to cut PCB boards into the required size and shape. It can automatically cut PCB boards, reducing the workload and time of manual cutting and improving production efficiency.

Adjust the PCB depanel machine program method

1. Check machine status
2.Adjust cutting speed
3.Set cutting depth
4. Adjust the in and out angle of the PCB board

Features

1, Max cutting length 600mm, or optional 400mm max length.

2, Circular blade and linear blade work together, circular blade moving separating.

3, Blade Moving 600mm Cutting Length V-cut PCB Separating Machine with Counter.

4, The max cutting width is unlimited, single PCB best at 1~200mm.

5, The operation platform can be adjustment, based on the height of upper components of the PCB, standard machine the height is less than 32mm.

6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.

Specification

Applications

1. PCB Manufacturing:

   • Primarily used in the PCB fabrication process to separate panels into individual boards, facilitating the assembly of electronic devices.

2. Prototyping and R&D:

   • Ideal for research and development environments where small batches of PCBs are produced and require precise cutting.

3. Repair and Rework:

   • Useful in repair shops for separating damaged boards from panels for testing, rework, or replacement.

4. Custom PCB Solutions:

   • Beneficial for companies that provide custom PCB designs and need accurate separation for various applications.

Benefits

• Precision and Quality: Ensures accurate separation without damaging the boards or their components, maintaining high product quality.
• Increased Efficiency: Automating the separation process speeds up production times, allowing for higher throughput.
• Reduced Waste: Minimizes material waste by providing clean cuts and preserving the integrity of the boards.
• Versatility: Capable of handling various PCB sizes and thicknesses, making it suitable for different manufacturing needs.
