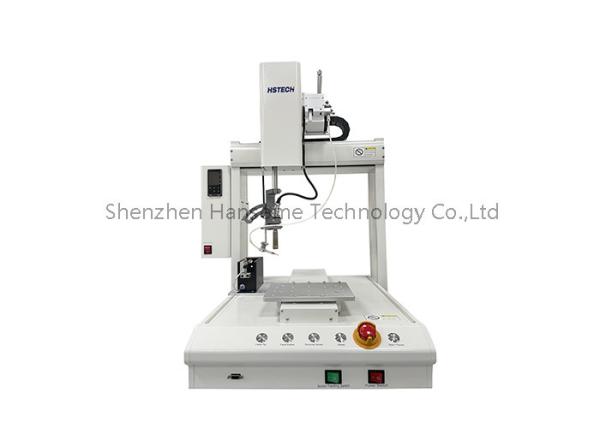

High Precision 4 Axis Solder Robot with Automatic Cleaning and Iron Head Alignment
High Precision 4 Axis Solder Robot with Automatic Cleaning and Iron Head Alignment
High Precision 4 Axis Solder Robot with Automatic Cleaning and Iron Head Alignment
High Precision 4 Axis Solder Robot with Automatic Cleaning and Iron Head Alignment
Specifications
Brand Name :
HSTECH
Model Number :
HS-S331R/HS-DS331R
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
5~7 work days
Packaging Details :
Wooden package, with foam inside
Product name :
Desktop soldering machine
Axis :
4 axis
Platform :
Single
Programming :
Manual with teaching box
Motor :
Stepper motor
Linear guide :
Hiwin brand
Voltage :
AC110V/220V
Warranty :
1 year
Description

High Precision Solder Robot with Auto Cleaning & Iron Head Alignment

Features

1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,

3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.

4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

Specification

Model HS-S331R/HS-DS331R
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 300*300*100mm
R axis 360 degree
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD,CorelDRAW
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 48kg
Machine dimension

520*585*800mm

High Precision 4 Axis Solder Robot with Automatic Cleaning and Iron Head Alignment

High Precision 4 Axis Solder Robot with Automatic Cleaning and Iron Head Alignment

Shenzhen Hansome Technology Co.,Ltd is a professional SMT board handling equipment (Loader,Unloader,Buffer Conveyor,Soldering Machine,Screw Fastening Machine,PCB Depaneling Machine,etc)manufacturer.We are a high-tech enterprise with independent intellectual property riahts, the company is mainly enaaged in the research and development, production and sales of SMT/THT production line board handling equipment.Our products have been exported to Europe,America,East Asia,South Asia, the middle East Asia, Africaareas and have good feedbacks.There are many customers who repurchase fromus.

Our company is committed to establishing longterm friendly cooperative relationswith domestic and foreign clients on the basis of mutual benefit.
