Thermocouple with Connector, 0-1000°C Use Temp, Ceramic/Plastic
Thermocouple with Connector, 0-1000°C Use Temp, Ceramic/Plastic
Thermocouple with Connector, 0-1000°C Use Temp, Ceramic/Plastic
Thermocouple with Connector, 0-1000°C Use Temp, Ceramic/Plastic
Specifications
Brand Name :
OM
Model Number :
K type
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 days
Packaging Details :
Carton
Product name :
K Type Thermalcouple
Test accuracy :
0.1~0.3°
Repeat accuracy :
±1.5°
Material :
nylon, , ceramic, plastic
Size :
a variety of specifications available
Condition :
New
Description

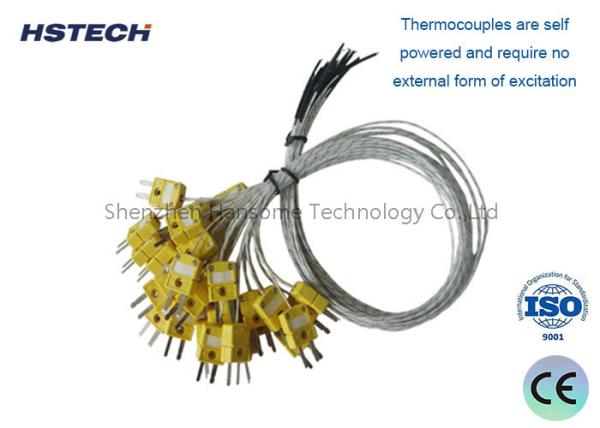

High Quality K Type Thermocouple with Connector TD Plugs SR Type Ceramic Plastic

Introduction

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots.

It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.

Specification

Product Conductor material Type Graduation

Use temperature°C

(short time)

Use temperature°C

Thermocouple

 PtRh30-Ptrh6 WRR B 0-1800°C 0-1600°C
PtRh10-Pt WRP S 0-1600°C 0-1300°C
PtRh13-pT WRB R 0-1600°C 0-1300°C
NiCrSi-NiSi WRM N 0-1000°C 0-1000°C
NiCr-NiAl(Si) WRN K 0-1200°C 0-900°C
NrCr-constantan WRE E 0-700°C 0-600°C
Iron- Constantan WRF J 0-600°C 0-500°C
Copper-Constantan WRC T 0-400°C 0-350°C

Thermal resistance

 Copper heat resistance Cu50 -50-150°C
Cu100 -50-150°C
Pt100 -200-600°C

Application

Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust,

diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors

in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
