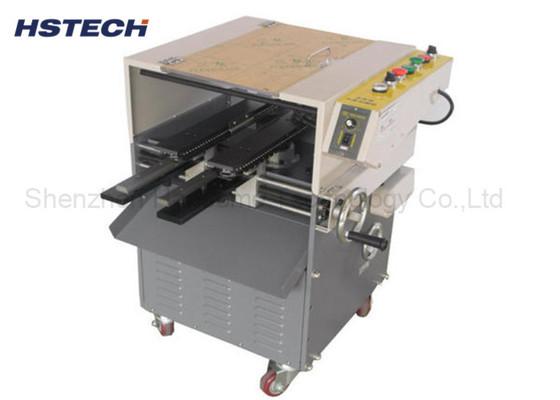

High Stability Automatic Input And Output The PCB Lead Forming Machine With The Prevent Bending Device
High Stability Automatic Input And Output The PCB Lead Forming Machine With The Prevent Bending Device
High Stability Automatic Input And Output The PCB Lead Forming Machine With The Prevent Bending Device
High Stability Automatic Input And Output The PCB Lead Forming Machine With The Prevent Bending Device
High Stability Automatic Input And Output The PCB Lead Forming Machine With The Prevent Bending Device
High Stability Automatic Input And Output The PCB Lead Forming Machine With The Prevent Bending Device
Specifications
Brand Name :
HSTECH
Model Number :
HS-500LC
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
5-7 work days
Packaging Details :
Wooden package, with foam inside
Product Name :
PCB Lead Forming Machine
Other Name :
PCB Board Feet Cutting Machine
Voltage :
AC220V, 50/60Hz
Efficient PCB Sizeght :
400*250mm
Quality :
Top
OEM/ODM :
Available
Warranty :
6 Months
Powwer :
1KW
Material :
Rubber
Description

High Stability Automatic Input And Output The PCB Lead Forming Machine With The Prevent Bending Device

Introduction

1, The machine is designed to trim the wire leads of PCB assembly after soldering process.
2, The fast turning tungsten carbide blade cuts the wire leads while feeding the PCB one by one to the equipped track manually.
3, For safety, it is absolutely required to push the PCB assembly by handle.
4 This machine is for trimming the wire lead of electronics components only.

Specification

Model HS-500LC
Power AC220, 50/60Hz/380V,50/60Hz
Max. PCB size 500mm(L) x 300mm(W)
Main axis speed 4500/Min
Main axis motor 3/4 Hp
Guide rail speed 0-3 M can be adjustable
Min. lead height 1.0-1.5mm Min
Machine Demension 900*670*800mm(W*D*H)
Net Weight 115KG

Features

1, Automatic input and output the PCB, cutting the PCB lead after the welding.
2, High stability, it can connect with the automatic soldering machine or AI machine.
3, Applies to the finger type slid to fasten the PCB board.
4, Finger slid change easy and economic.
5, With the prevent bending device, to overcome the bending PCB in welding.
6, Input speed can be adjusted, max. speed is 3m/min.
