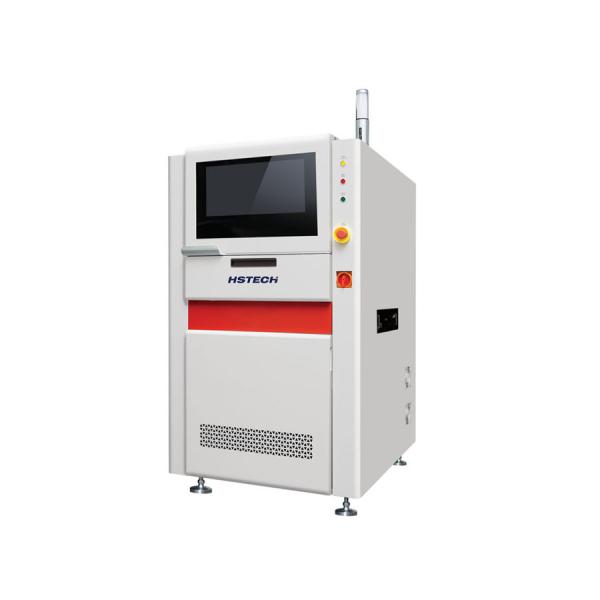

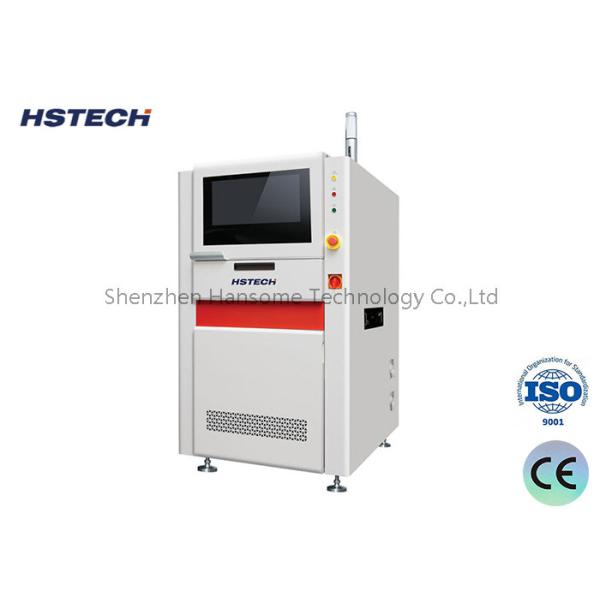

CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine
CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine
CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine
CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine
Specifications
Brand Name :
HSTECH
Model Number :
HS-C510F
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package
Product Name :
Inline CO2 PCB Laser Marking Machine
Warranty :
1 Year
Control :
Touch screen
PLC :
MITSUBISHI
Relay Brand :
Schneider
Optoelectronic Switch :
OMRON
Material :
Aluminum Alloy
Condition :
New
Thickness :
0.3 - 5mm
Signal :
SMEMA
Application :
Electronic Assembly
Color :
Silver
Control System :
PLC
OEM/ODM :
Available
Total power :
2600W
Power Supply :
AC220V
Air Pressure :
4-6bar
Mounting accuracy :
±0.01mm
Type :
Automatic
Weight :
30KG
Description

CCD Mark Point Location Barcode Reading Inline CO2 PCB Laser Marking Machine

​Specification

Model HS-C510F
Working method Laser head moving
Leaser brand SYNRAD CO2(America brand)
FIducial location CCD+Mark positioning
Inline reading Camera inline reading
PCB thickness 0.5~5.0mm
PCB dimension 50*50~510*460mm
Transpoting height 900±20mm
Transportation direction L-R/R-L
Width adjustment Automatic
XY control system PC+board card+servo motor
XY control accuracy ±0.02mm
Wrong material recognition Nagative board/Reverse/wrong recognition
Bad mark recognition

Auto recognition bad mark,

wont mark bad marks
Anti recode Supported
Control system Win7+self developed system
Power supply Single phase AC 220V 16A 50/60Hz
Air pressure ≥0.5 Mpa
Dimension W1000*L1600*H1700 (mm)
System import SHOP FLOW MES IMS SFIS,etc
Dimension W1000*L1600*H1700 (mm)
Weight 700 KG

Features

1, CCD Mark point location

2, CCD inline barcode reading

3, CCD barcode quality analysis

4, X Y servo driver, accuracy±0.02mm
