Specifications
Brand Name :
HSTECH
Model Number :
HS-310L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P
Supply Ability :
200sets per month
Delivery Time :
10~15 work days
Packaging Details :
Wooden pacakge
Product name :
Pneumatic PCB depanelizer
Other name :
V-CUT PCB Separator
Voltage :
AC100-240V
Pcb length :
0~ 360mm
PCB thickness :
0.1~2.0mm
Part top height :
40mm(max)
Part bottom height :
20mm(max)
Usage :
PCB board,aluminum board,Cut v-cut pcb,LED board
Description

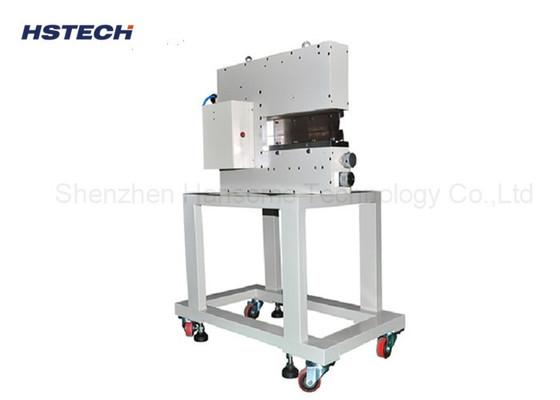

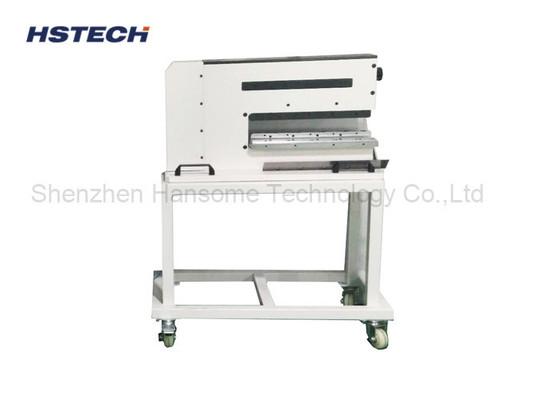

Pneumatic Driver Solenoid Vale Controlled High Speed Pneumatic PCB Depanelizer V-CUT PCB Separator

Introduction

1. Pneumatically driven and electric control , sample design. There have sensor device in the machine ,cuttting board one time with lowest cut stresses.HS-310 apply for separate precise SMD PCBA or thin plates.

2. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process,improve products quality .
3. Due to the special design of the blade ,boards with high components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without cutting stress.

Features

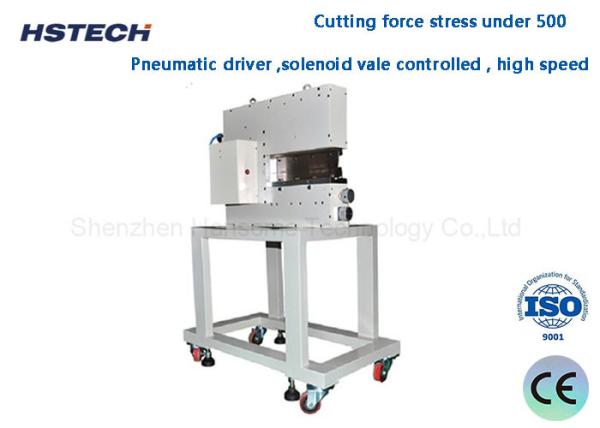

1. Cutting force stress under 500, No vibration and noise during cutting process to prevent precise components damage.
2.Pneumatic driver ,solenoid vale controlled , high speed.
3.The up and lower blade height are adjustable , Gap for insertion of the PCB board can easily be adjusted by adjusting knob in the top side of the machine.
4.Lower blade height adjust front and real portion can be adjusted separately, don't need shim , which make change and adjust blade more easy . The blade can sharpening many times, lower cost .
5.The PCB or thin plate without v-grooved can customized tray and prevent stay positioning device.
6.Operation and maintenance can be done also by unskilled personnel .

Specification

Product name PCB depanelizer
Model HS-310L
Part-up height Max 40mm
Part-down height Max 20mm
Air supply 5Kgf/cm
Output 12.5tons(gross)
Efficient cutting length 1-360mm
Linear blade size 360*43.5*6mm
PCB thickness 0.1mm~2.0mm(With v grove)
0.1mm ~1.0mm(Without V grove )
Blade material Import high quality high speed steel tool
Separating speed 1-300mm/s
V-cut thickness 0.3-3.5mm
Air consumption 200-400(L/min)
Machine size 700*325*400mm
Weight 130kg
Suitable board All V-cut boards

Application boards

Pneumatic Driver Solenoid Vale Controlled High Speed Pneumatic PCB Depanelizer V-CUT PCB Separator

Pneumatic Driver Solenoid Vale Controlled High Speed Pneumatic PCB Depanelizer V-CUT PCB Separator

Pneumatic Driver Solenoid Vale Controlled High Speed Pneumatic PCB Depanelizer V-CUT PCB Separator

About Packaging

Pneumatic Driver Solenoid Vale Controlled High Speed Pneumatic PCB Depanelizer V-CUT PCB Separator

Pneumatic Driver Solenoid Vale Controlled High Speed Pneumatic PCB Depanelizer V-CUT PCB Separator

Pneumatic Driver Solenoid Vale Controlled High Speed Pneumatic PCB Depanelizer V-CUT PCB Separator
