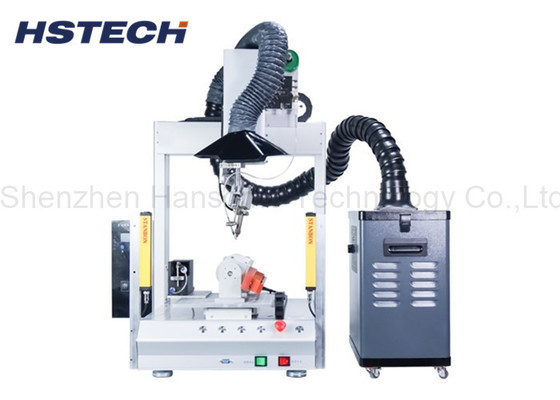

4 Axis Desktop Auto Soldering Robot With Smog Cleaner Installation

Introduction:

This automatic soldering machine is a special customized soldering machine, it equipped with a smog cleaner to clean the solder smog, for keep better air environment in the production factories.

This machine is a normal requirment in some Europe countries, and it become a trand all over the world. The cleaner has a smog suck in pipe which is installed on the top of the solder tip, and moving together with the solder tip, through this method the cleaner can suck in most of the smog,keep the air clean and more health.

Smog Cleaner Features:

1, The pipe is 1.4M in length, big opening size convenient for smog suck in.Metal material machine body, stable.

2, Brush-less motor, characterized by low noise and high revolution, stable operation, long service life, low power consumption, high efficiency (maintenance free and zero consumables).

3, Vortex fan design, characterized by fatigue resistance, smooth running, low noise, large air volume, high suction and high efficiency.

4, Step-less speed regulator installed for remote control of air volume.

5, Multiple filter design to ensure thorough filtration of toxic or hazardous substances and protect human and environmental health.

6, All filter elements are replaceable, which both extends the service life of filtering cores and reduces their operating cost.

7, Easy installation and environment fitting, with National air quality testing listed.

8, CE certified, safe and reliable.

Smg Cleaner Specification:

Machine Features:

1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.

2, The soldering iron without nitrogen, very safety and environment protective.

3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.

4, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.

5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

7, With the handheld LCD teaching pendant, the programming is simple and easy to learn.

Specification:
