3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader
3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader
3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader
3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader
3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader
3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader
Specifications
Brand Name :
HSTECH
Model Number :
HS-UD330
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
15~20 work days
Packaging Details :
Wooden package
Product name :
PCB Unloader
Other name :
SMT Line Unloader
PCB size :
50*50~450*330mm
PCB unloading time :
Approx 6 seconds
Magazine change over time :
Approx 30 seconds
Power supply :
AC220V, 50/60Hz
PCB thickness :
Min 4mm
Communication :
SMEMA
Description

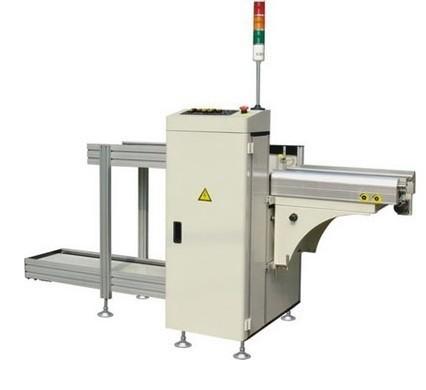

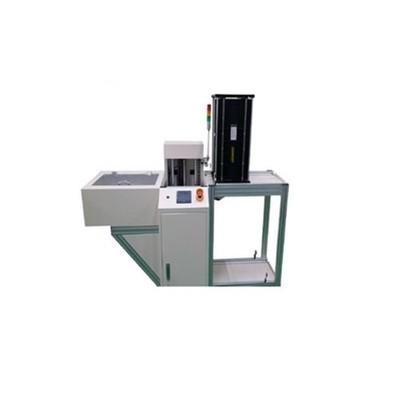

3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader

Application

This PCB unloader machine used in the end of SMT production line,it used for collecting PCBs into the magazines.

Features

1, Mitsubishi PLC.

2, ZD motor driven.

3, Thicker transporting conveyor belt.

4, 3 magazines for changing over, top side one magazine, button side 2 magazines.

5, Precision pusher push the pcbs to the magazines

6, Top and bottom pneumatic clamps to secure magazine rack.

7, SMEMA compatible.

Specification

Function This unit is used for unloading the PCBs.
Transport height 910±30mm
PCB loading time Approx 6 seconds
Magazine change over time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Conveyor speed 0.5-20M/min or customized
Pitch selection 1-4(10mm pitch)
Signal SMEMA

Model HS-UD250 HS-UD330 HS-UD390 HS-UD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine dimension 1900*800*1200mm 2320*880*1200mm 2620*940*1200mm 2620*1080*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 220kg 280kg 320kg

About Packaging

3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader
