Specifications
Brand Name :
HSTECH
Model Number :
HS-SL5331
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package, foam inside
Product name :
4Axis Automatic Screw Locking machine
Feeding :

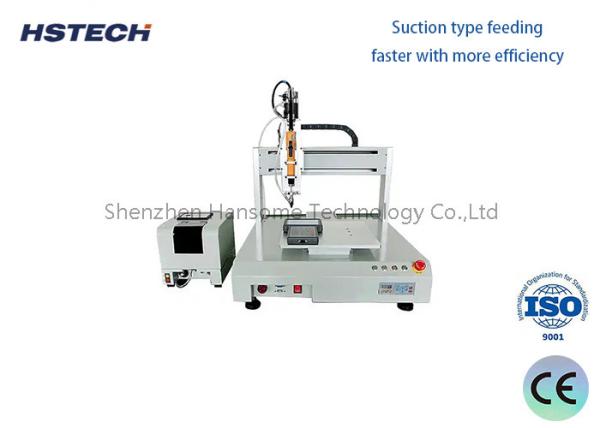

Suction feeding
Axis :
4axis
Screws compatible :
M1-M6, or customized
Moving Range :
500*300*300*100mm
Port :
Shenzhen
Oem :
Yes
Warranty :
1 year
Description

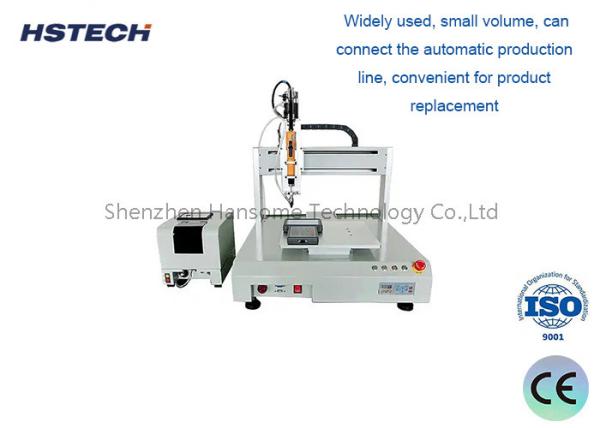

Smart 4 Axis Automatic Screw Locking Mach. w/ Feeder, M1-M6
Introduction
The screw machine is a automtic equipment, with 4 axis moving system, double working station, single feeder, the whole machine composed of a feeding system and a lock-locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. This screw lock machine is a automation equipment, widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.
Features
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2. High degree of automation, easy operation which the staff can master and debug quickly.
3. With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
4. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management..
5. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Specification

Model HS-SL5331
Production name 4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z) 500*300*300*100mm
X/Y1/Y2 axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension 746*585*800mm
Machine weight 65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
