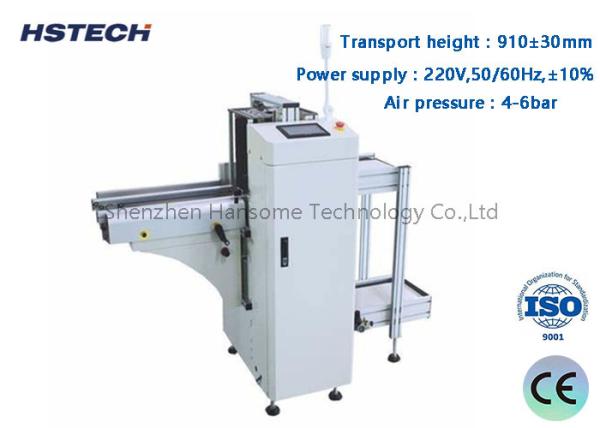

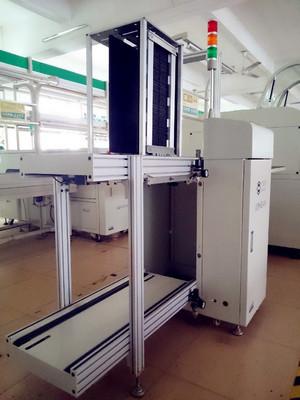

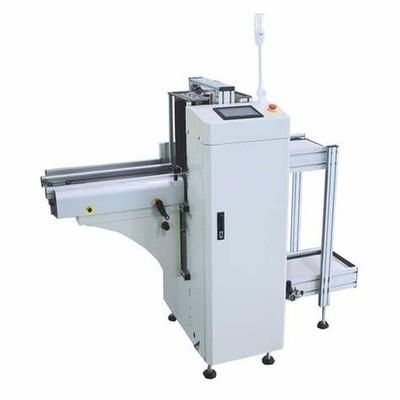

Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine
Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine
Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine
Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine
Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine
Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine
Specifications
Brand Name :
HSTECH
Model Number :
HS-LD330
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
15~20 work days
Packaging Details :
Wooden package
Product name :
Multiple magazine PCB Loader
Other name :
SMT board loading machine
Power supply :
AC110V/220V,50/60Hz
Air pressure :
4-6 bar
PCB thickness :
Min 0.4mm
Pitch selection :
10-40mm
Conveyor speed :
0.5-20M/min or customized
Communication :
SMEMA
Description


Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine

Application

This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.

Features
1, Module design.

2, Stability enhanced by robust design.

3, Economic design arm test.

4, Top and bottom pneumatic clamps to secure magazine rack.

5, No PCB breakage guaranty during loading &unloading.

6,SMEMA compatible.

Specification

Product namePCB Loader Machine
Transport height910±30mm
PCB loading timeApprox 6 seconds
Magazine replace timeApprox 30 seconds
Transportation directionL~R, or R~L
OperationFront operation
Track fixed sideFront side(or specify)
Power supply220V,50/60Hz,±10%
Air pressure4-6bar
PCB thicknessMin 0.4mm
Magazine qtyUpper side:1 pc,bottom side: 2 pc
Pitch selection1-4(10mm pitch)
Conveyor speed0.5-20M/min or customized
SignalSMEMA

Model selection

ModelHS-LD250HS-LD330HS-LD390HS-LD460
Efficient PCB length50*50~350*250mm50*50~455*330mm50*50~530*390mm50*50~530*460mm
Machine Size1400*800*1200mm1650*880*1200mm1800*940*1200mm1800*1010*1200mm
Magazine size355*320*563mm460*400*563mm535*460*570mm535*530*570mm
Weight140kg180kg220kg260kg

Control Bottun and electric box

Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine

About Packaging

Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine

Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine

Module Design Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine
