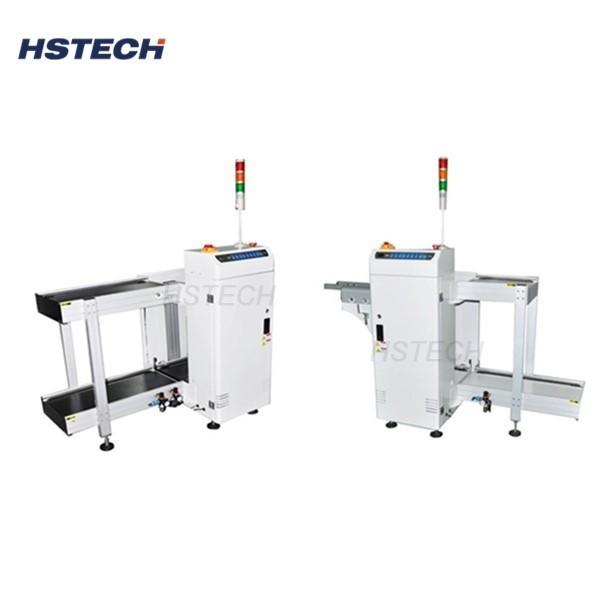

PLC Controlled Automatic PCB Handling Equipment with ESD Transport Belt and Selective Pitch Settings
PLC Controlled Automatic PCB Handling Equipment with ESD Transport Belt and Selective Pitch Settings
PLC Controlled Automatic PCB Handling Equipment with ESD Transport Belt and Selective Pitch Settings
PLC Controlled Automatic PCB Handling Equipment with ESD Transport Belt and Selective Pitch Settings
Specifications
Brand Name :
HSTECH
Model Number :
HS-250BULD
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package
Product name :
Button Control PCB Unloader
Power :
AC110V/AC220V,50/60Hz
PLC :
Panasonic
PCB width :
Adjustable
Transport belt :
ESD
Pcb direction :
L-R or R-L(customized)
Description

PCB Handling Equipment with Automatic Magazine Change-over and PLC Control System

Features

  1. Durable Construction: Made of stainless steel materials for long-lasting durability.
  2. Control System: Equipped with a PLC control system.
  3. Loading Capacity: Features a loading capacity of 3 magazines.
  4. PLC Brand: Utilizes a Panasonic PLC.
  5. Pitch Settings: Offers selective pitch settings.
  6. Magazine Change-Over: Capable of automatic magazine change-over.
  7. Gas Circuit Design: Features a specially designed gas circuit for smooth and stable PCB transmission.
  8. Machine Status Display: Includes a tower light display for clear indication of machine status.
  9. SMEMA Signal Compatibility: Compatible with SMEMA signals.

Specification

Model HS-250ULD HS-330ULD HS-390ULD HS-460ULD
Voltage AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension (50*50)~(350*250) (50*50)~(455*330) (50*50)~(530*390) (50*50)~(530*460)
Magazine dimension 355*320*565 460*400*565 535*460*565 535*530*565
Magazine quantity 3 pcs
Air supply 0.4~0.6Mpa
Transport height 900±20(mm) standard
Loading time 6 sec
Magazine change over time around 20 secs
Transport direction L to R, or R to L,optional
PCB thickness Min 0.4mm
Step pitch selection 1-4(10mm step pitchs)​
Communication SMEMA
Machine dimension 1330*765*1250 1920*845*1250 2160*910*1250 2160*975*1250
Weight Approx 230kg Approx 260kg Approx 290kg
Approx 320kg

PLC Controlled Automatic PCB Handling Equipment with ESD Transport Belt and Selective Pitch Settings

PLC Controlled Automatic PCB Handling Equipment with ESD Transport Belt and Selective Pitch Settings

Shenzhen Hansome Technology Co., Ltd. specializes in the production of SMT board handling equipment, encompassing Loaders, Unloaders, Buffer Conveyors, Soldering Machines, Screw Fastening Machines, PCB Depaneling Machines, and various other devices. Our products have received positive reviews and have been exported worldwide, including to Europe, America, East and South Asia, the Middle East, and Africa, earning the loyalty of many repeat customers.

We are committed to fostering long-term, friendly, and mutually beneficial partnerships with both domestic and international clients. Our team of skilled technicians and sales professionals utilizes cutting-edge technology to provide our customers with efficient and dependable board handling solutions. Furthermore, our experienced engineering team remains updated on the latest advancements in smart factories, continually refining our products and technologies to align with market trends. We are dedicated to developing more automated and cost-effective products, and we also offer customized OEM services to meet our clients' unique needs.
