Specifications
Brand Name :
HSTECH
Model Number :
HS-SL5331
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package, foam inside
Product name :
4Axis Screw Fastening Machine
Feeding :
Suction feeding
Screw feeder :
Single, or customized two
Screws compatible :
M1-M6, or customized
Moving Range :
500*300*300*100mm
Material :
Aluminum
Port :
Shenzhen
Warranty :
One year
Description

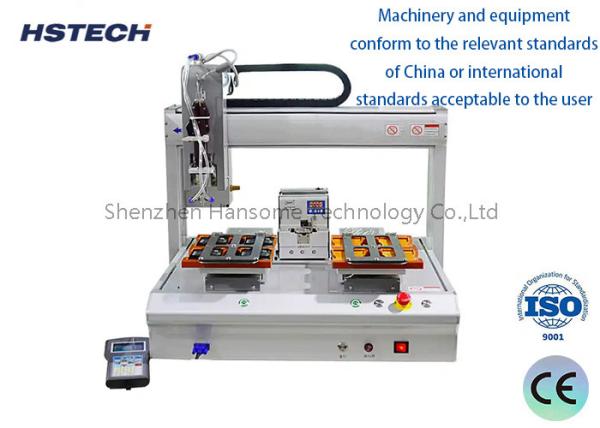

4 Axis Chain Moving Closed Loop Automatic Screw Bits Fastening Machine
Introduction
This versatile 4-axis screwdriver machine, tailored for diverse industries such as smartphones, personal computers, electronics, and furniture manufacturing, boasts a dual workstation setup featuring a solitary screwdriver and feeder. By incorporating a seamless feeding and screw-locking system, it meticulously arranges screws in neat rows, thereby drastically boosting overall production efficiency.

Features

Compact and Adaptable:

Seamlessly integrates into various production lines, optimizing space utilization and facilitating smooth tool changes for a seamless workflow.

Intelligent Quality Control:

Smartly detects absent fasteners or loose screws, guaranteeing consistent superior quality.

Dual Y-Axis Boost:

Accelerates component loading by alternating processes, thereby enhancing overall throughput.

High-Precision 4-Axis Workspace:

A versatile 500x300x300x100mm workspace tailored for intricate, high-accuracy tasks.

User-Centric Automation:

Merges advanced automation with user-friendly controls for straightforward management and optimization.

Flexible Programming Options:

A touchscreen interface and teach pendant provide customizable setup choices for enhanced versatility.

Streamlined Multi-Machine Control:

Centralized management simplifies complex operations, facilitating maintenance and monitoring.

Proactive Leak Prevention:

Identifies missing screws preemptively, preserving product integrity and minimizing operational disruptions.

Specification

Model HS-SL5331
Production name 4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z) 500*300*300*100mm
X/Y1/Y2 axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension 746*585*800mm
Machine weight 65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
