Maximizing Space and Streamlining Workflow with Compact 4 Axis Screw Fastening Machine
Maximizing Space and Streamlining Workflow with Compact 4 Axis Screw Fastening Machine
Maximizing Space and Streamlining Workflow with Compact 4 Axis Screw Fastening Machine
Maximizing Space and Streamlining Workflow with Compact 4 Axis Screw Fastening Machine
Specifications
Brand Name :
HSTECH
Model Number :
HS-SL5331
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package, foam inside
Product name :
4Axis Screw Fastening Machine
Feeding :
Suction feeding
Screw feeder :
Single, or customized two
Screws compatible :
M1-M6, or customized
Moving Range :
500*300*300*100mm
Material :
Aluminum
Port :
Shenzhen
Warranty :
One year
Description

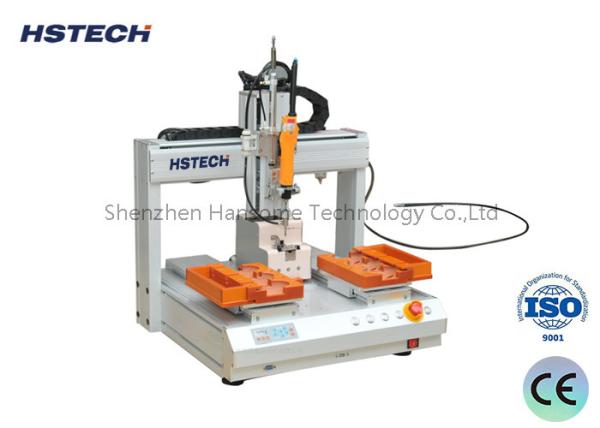

4 Axis Chain Moving Closed Loop Automatic Screw Bits Fastening Machine
Introduction
This versatile 4-axis screw-driving machine, specifically designed for a wide range of industries including smartphones, personal computers, electronics, and furniture manufacturing, features a dual workstation design equipped with a single screwdriver and feeder. It incorporates a smooth feeding and screw-locking mechanism that expertly organizes screws into orderly rows, resulting in a significant enhancement of overall production efficiency.

Features

  1. Compact & Versatile: Easily integrates into various production lines, optimizing space and simplifying tool changes for uninterrupted workflow.
  2. Smart QC: Intelligently detects missing fasteners or loose screws, ensuring consistent high quality.
  3. Dual Y-Axis Efficiency: Doubles component loading speed through alternating processes, enhancing throughput.
  4. Precise 4-Axis Workspace: Versatile 500x300x300x100mm workspace for intricate, high-precision tasks.
  5. User-Friendly Automation: Combines advanced automation with intuitive controls for easy management and optimization.
  6. Flexible Programming: Touchscreen interface and teach pendant offer customized setup options for added versatility.
  7. Simplified Multi-Machine Management: Centralized control simplifies complex operations, easing maintenance and monitoring.
  8. Advanced Leak Prevention: Proactively identifies missing screws, maintaining product integrity and minimizing downtime.
Specification

Model HS-SL5331
Production name 4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z) 500*300*300*100mm
X/Y1/Y2 axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension 746*585*800mm
Machine weight 65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
