PBT PA46 1.27mm Pitch SMT Female Connector With Cap Reel Packing
PBT PA46 1.27mm Pitch SMT Female Connector With Cap Reel Packing
PBT PA46 1.27mm Pitch SMT Female Connector With Cap Reel Packing
PBT PA46 1.27mm Pitch SMT Female Connector With Cap Reel Packing
Specifications
Brand Name :
JiLN
Model Number :
4000XXFMSNXWR01
Certification :
UL/CUL/Rosh/SGS
Place of Origin :
SHENZHEN
MOQ :
500pcs
Price :
Negotitation
Payment Terms :
L/C, , T/T, Western Union,
Supply Ability :
8000000Kpcs
Delivery Time :
5-8 days
Packaging Details :
Tube packing/PE bag packing
Material :
PBT/PA46
Color :
Red or White or Black
Soldering Type :
DIP/SMT/RIght Angle
Clip Material :
CeCu(Beryllium Copper)
Gender :
Female Header
Plating :
Au or Sn over 50U"Ni
Description
Products Description

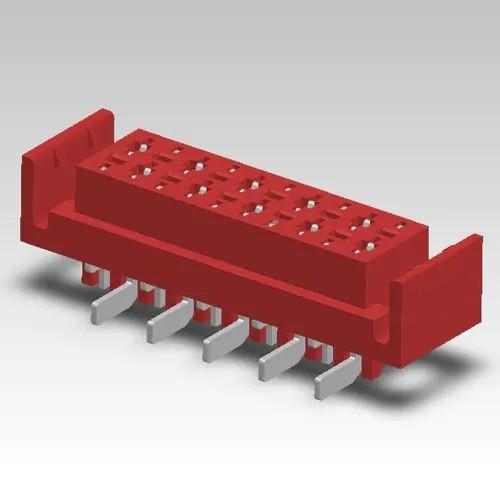

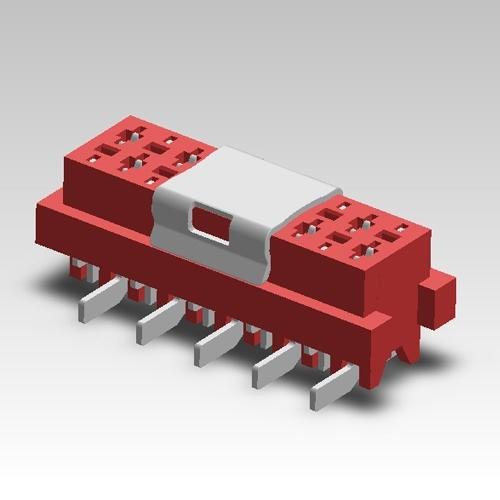

SMT Type Female-On-Board Connector Top Entry 1.27mm Pitch

With Cap Reel Packing

SPECIFICATIONS:

MATERIAL
UL No#
E362810
Contact Material
Phosphor Bronze/brass
Insulator Material
PA46/PBT
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
200V
Current Rating
3.0A
Insulation Resistance
1000MΩ Min
Package :
Tube packing/PE bag packing
soldering type
DIP/SMT
Operation Temperature:
-40 ℃ to +105 ℃

Description

Micro-MaTch Female-on-Board PCB socket connectors for use in both vertical and right angle board to board and wire to board interconnections.

Incorporates Micro-MaTch contact spring system with indented solder legs for increased retention.

The Micro-MaTch range of connectors have a compact, space saving design with a 1.27mm pitch. The female contacts have a contact spring system that prevents fretting corrosion. A positioning spring absorbs movement between the male and female contacts caused by vibration and thermal expansion. Prevention of movement on the contact spot enables a gas tight connection to be made which makes the contact spring system fretting resistant.

Engineering drawing:(Support Download)

4000XXFSSNXNX01.pdf DIP Type

4000XXFRSNXNT01 Right Angle.pdf Right Angle

4000XXFMSNXWR01.pdf SMT Type

PBT PA46 1.27mm Pitch SMT Female Connector With Cap Reel Packing

JILN Quality Control

Since company foundation of the 2000, we emphasize canonical management and high-quality requirements. We has already acquired ISO9001, ISO14001international quality, environment and management systems certification. The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal blocks). All items are in line with EU RoHS and REACH environmental requirements

Our services

1. Specialized in pcb connectors over 15 years.
2. Over 10 years experienced Engineer support OEM&ODM order.

3. All molding stampling,tooling and electroplating processes completed in-house,

4. Fast delivery services help customer satifisfaction rate reach 99%.
5. Cooperation with FCI,Phoniex,Samsung,SIEMENS,PHILPS,OMRON over 5 years.
6. Prompt delivery(3-5 work days),small MOQ(100pcs) .

7. Hight quality,rich experienced,excellent serivce will be your reliable connector solution specialist.

8. Used in the most of home appliances,computer,PCB,LCD,TV
9. Our factory has over decades manufacturing experience.
10. We can provide customers with over 10 sorts and 60,000 different specification connectors parts.

FAQ

Q1: Why choose our company?
A: 1. Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.

2. Our MOQ is: 100 PCS(1 PCS for sample).
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.

Q2: How about samples?
A: 20 Piece free sample is available, but you have to pay the freight fees.

Q3: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.
2. Payment terms: T/T, Paypal and other terms.

Q4: What about your delivery time?
A: Usually 7-10 working days. If you are very urgent, we can negotiate.


Q5: What certificates do your factory have?
A: UL, SGS, ISO9001:2008, ISO14001:2004 etc.
