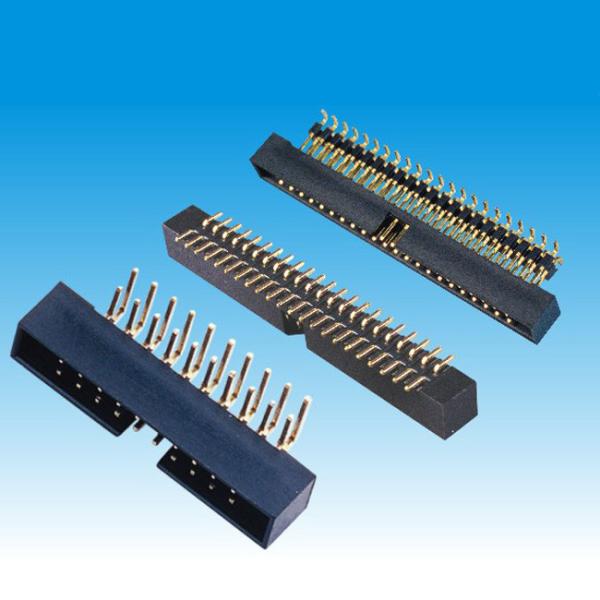

Box Header 2.00mm H5.65 PCBA Right Angle SMT Connector
Box Header 2.00mm H5.65 PCBA Right Angle SMT Connector
Box Header 2.00mm H5.65 PCBA Right Angle SMT Connector
Box Header 2.00mm H5.65 PCBA Right Angle SMT Connector
Specifications
Brand Name :
JiLN
Model Number :
3220XXG0XXBK00X01
Certification :
ISO1400
Place of Origin :
China
MOQ :
1000
Price :
0.01-1USD
Payment Terms :
T/T
Supply Ability :
30000000PCS per Month
Delivery Time :
7-10 Working Days
Packaging Details :
Tube/Tray
Current Rating :
1.5AMP
Operating Temperature :
-40℃ to+105℃
Resistance :
20mΩ Max
Material :
Brass
Color :
Black
Withstand Voltage :
500V AC/DC
Description

2.00mm H5.65 Box Header Right Angle SMT Connector PCBA Application Factory Manufacture

SPECIFICATION:

1.Rated Current: 1.5AMP

2.Contact Resistance: 20mΩ Max

3.Withstand Voltage: 500V AC/DC

4.Insulation Resistance: 1000mΩ Min

5.Operation Tempature: -40℃-+105℃

Box header is usually composed of a square plastic socket and a number of neatly arranged square pins.Commonly used peripheral sizes are 1.27 pitch, 2.0 pitch, and 2.54 pitch. According to the difference in pitch, the diameter of the square pin header used is also changed accordingly. The contact surface between the bottom and the PCB board can be designed as SMT patch (as shown) or DIP 180 degrees.

Advantages:

1. All kinds of products passed RoHS,SGS,100% tested before delivery

2. Factory passed ISO9001:2008 and ISO14001:2004

3. Available for OEM/ODM order

4.Some plastic passed UL cerficated

5.Well-equipped testing facilities and strong technical force

6.Prompt delivery and competitive price and quality

7.Widely used in most of home appliances, computer, PCB, LCD and TV

8.Over ten years manufacture exprience

Certifications:

Packaging & Delivery
Packaging Details
Tuble packing/Reel packing/Pe packing/Box packing
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated

FAQ:

Box Header 2.00mm H5.65 PCBA Right Angle SMT Connector

Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).
