Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal
Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal
Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal
Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal
Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal
Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal
Specifications
Brand Name :
JiLN
Model Number :
JL9EDGK-750XXB01-2D
Certification :
UL/CUL/SGS/Rosh
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
8000000Kpcs
Delivery Time :
5-8 days
Packaging Details :
PE bag packing
Hosing Material :
PBT(UL94V-0)
Contact :
Brass
Plating Way :
Tin Plated
Screw :
M4.0 Steel Ni Plated
Screw Torgue :
1.2Nm(10.53LB,in)
Name :
Terminal Block Connector
Description

JL9EDGK 7.5 Motor Driver Server Plug-in Terminal JL9EDGK 5.0mm High Positive Degson Black 13 with lock

Description

Terminal blocks are used to secure and/or terminate wires and, in their simplest form, consist of several individual terminals arranged in a long strip. Terminals are useful for connecting wiring to a ground or, in the case of electrical power, for connecting electrical switches and outlets to the mains.

Terminal Blocks are commonly used to connect a chassis ground, such as on a record player or surge protector. Most public address systems in buildings also use them for speakers, and sometimes for other outputs and inputs. Alarm systems and building sensor and control systems have traditionally used large numbers of screw terminations.

SPECIFICATIONS:
MATERIAL
UL No#
E484895
Contact Material
brass
Insulator Material
PBT
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
AC2000V/1min
Current Rating
25A
Insulation Resistance
500MΩ /DC500V
Package :
PE bag packing
soldering type
right angle/DIP
Operation Temperature:
-40 ℃ to +105 ℃

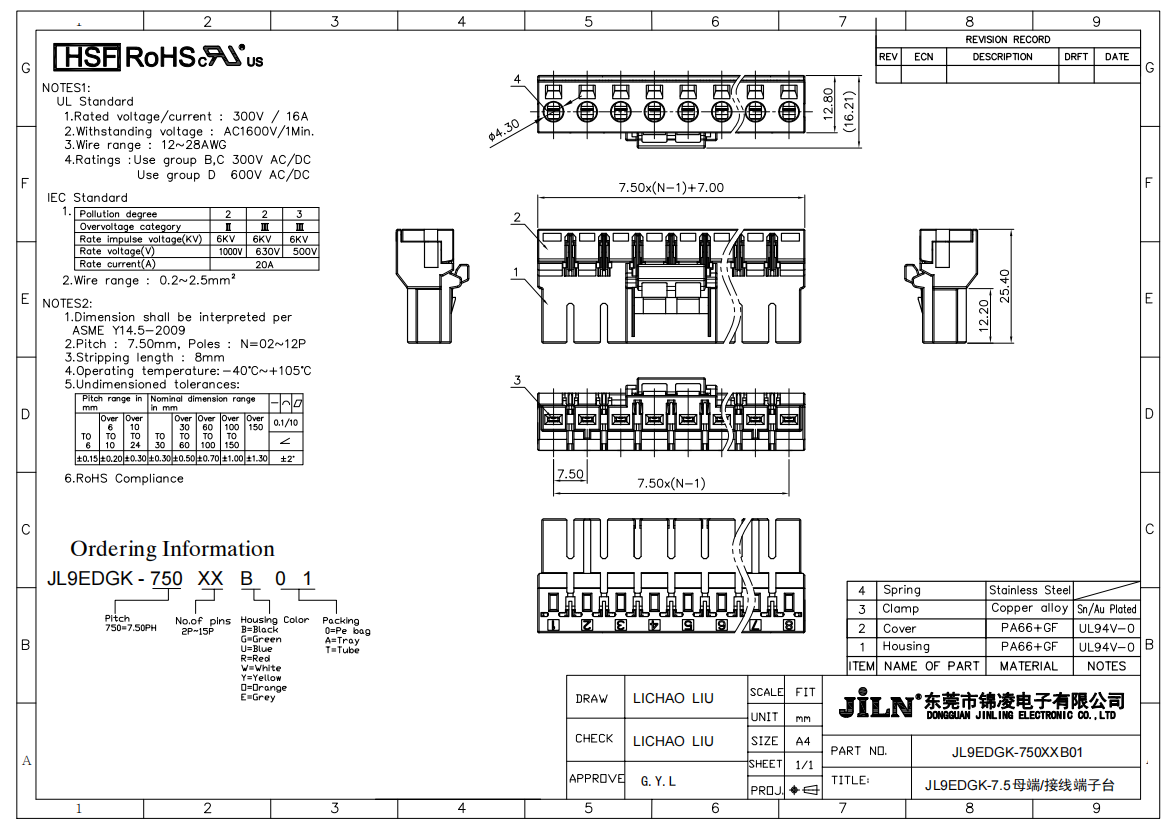

JL9EDGK-750XXB01-2D.pdf Engineering Drawing

Engineering drawing:

Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal

Related Products

Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal

JILN Quality Control
Since company foundation of the 2000, we emphasize canonical management and high-quality requirements. We has already acquired ISO9001, ISO14001international quality, environment and management systems certification. The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal blocks). All items are in line with EU RoHS and REACH environmental requirements

FAQ
Q1: Why choose our company?
A: 1. Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.
2. Main customer:

Brass PBT Electrical Terminal Block M4.0 Steel CUL PBT Plug In Terminal

3. Our MOQ is: 100 PCS(1 PCS for sample).
4. Good quality, competitive price with best service.
5. Available for ODM/OEM order.
Q2: How about samples?
A: 20 Piece free sample is available, but you have to pay the freight fees.
Q3: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.
2. Payment terms: T/T, Paypal and other terms.
Q4: What about your delivery time?
A: Usually 7-10 working days. If you are very urgent, we can negotiate.
Q5: What certificates do your factory have?
A: UL, SGS, ISO9001:2008, ISO14001:2004 etc.
Dear friend, if you are interested in our products, pls send me your product information, We will surely quote for you in 24 hours, thank you!
