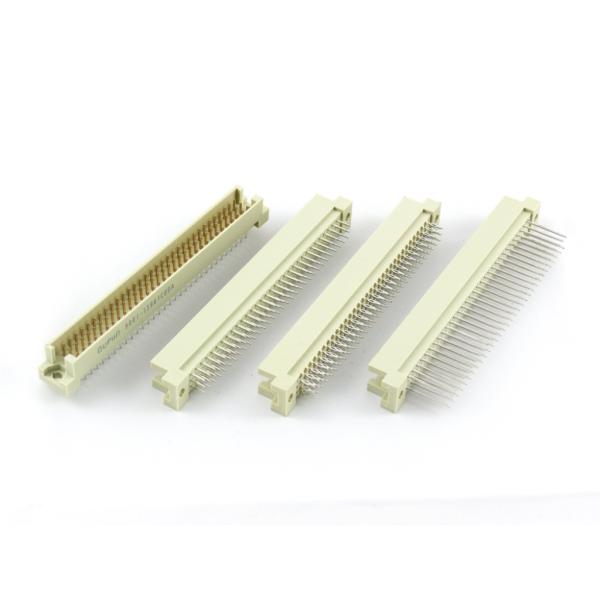

R Type Din 41612 Connectors 32pin 64pin 96pin Male Connector Press Fit ERNI Equivalent
R Type Din 41612 Connectors 32pin 64pin 96pin Male Connector Press Fit ERNI Equivalent
R Type Din 41612 Connectors 32pin 64pin 96pin Male Connector Press Fit ERNI Equivalent
R Type Din 41612 Connectors 32pin 64pin 96pin Male Connector Press Fit ERNI Equivalent
Specifications
Certification :
ISO9001, ISO14001, IATF16949
Place of Origin :
China
MOQ :
1000 pcs
Supply Ability :
10k daily capacity
Delivery Time :
2 weeks
Packaging Details :
tray, blister
Plastic material :
PBT
Contact material :
phosphor bronze
Rated current :
3A
Pitch :
2.54mm
Plated :
gold or tin plated
Operating temperature :
-40-+105 degree
Description

Din 41612 R type 32pin 64pin 96 pin male connector press fit ERNI equivalent

Material and plating:

Housing: PBT, UL94V0, beige or gray;

Contact: Brass;

Lock: Phosphor bronze;

Contact area plating Gold plated, and tin or gold flash plated on soldering area,

Electrical characteristics:

Current rated: 2A;

Dielectrical withstanding voltage: AC 1000V for 1 minute;

Insulation resistance: 10MΩ, min at DC 500V;

Contact resistance: 10Mω max at DC 100mA;

Operating temperature: -55 degree to 125 degree;

RoHS compliant;

R Type Din 41612 Connectors 32pin 64pin 96pin Male Connector Press Fit ERNI Equivalent
