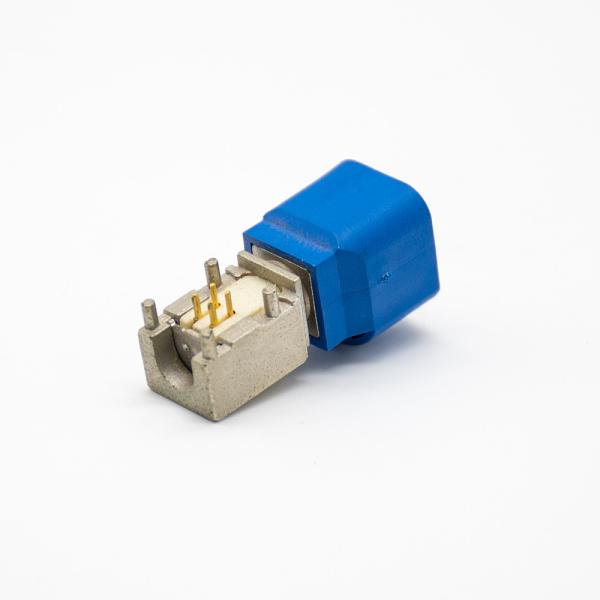

C Code 4 Pin Automotive Male FAKRA HSD Connector For LVDS
C Code 4 Pin Automotive Male FAKRA HSD Connector For LVDS
Specifications
Brand Name :
Shinelink
Model Number :
SL-FAKRA-4P-C
Certification :
ISO9001, IATF16949, ISO14001
Place of Origin :
China
MOQ :
1000 pcs
Payment Terms :
L/C, T/T
Supply Ability :
5k pcs daily capacity
Delivery Time :
14 days
Packaging Details :
tray
brand :
Shinelink
Pins :
4p
Gender :
Male
Code :
C Code
Description

Fakra 4 Pin Automotive Male Connector for LVDS

Place of Origin: China

Brand Name: ODM

Model Number: RHT-HSD-20

Type: Fakra HSD, Fakra HSD LVDS 4 Pin

Application: Automotive, Vehicle infotainment modules, Cameras

Gender: Male

Pins: 4p

Code: C Code

Frequency range: DC - 6 GHz

Impedance: 50 ohm/75 ohm;

Housing: PA66+30%GF

Payment: TT/PAYPAL/WESTERN UNION

Lead time: 7 to 10 days

Packaging & Delivery

Selling Units: Single item

Single package size: 20X18X10 cm

Single gross weight: 0.130 kg

Package Type: Blister Box+Carton / PE bag+Carton

Lead Time :

Quantity(Pieces) 1 - 5 6 - 50 51 - 100 >100
Est. Time(days) 5 7 10 To be negotiated

Product Name: C Code Signal Blue Fakra 4 Pin Automotive HSD Male Plug Connector for LVDS

Tag: Fakra HSD Panel, Plug/Male, Right Angled/90°

Product No.: RHT-HSD-20

HSD Connector Technical Datasheet
Materials Body PA66 / PBT
Terminal Brass ,Au Plated / Nickel
Base die castings Zinc

Mechanical

Characteristics

 Insertion force ≤30N
Withdrawal force ≥ 5N
Locking force ≥ 100N
Durability > 25 times

Electrical

Characteristics

 Frequency 0-6Ghz
Impedance 100Ω
Insulation resistance 1000MΩ Min , After swapping 500MΩ Min
Contact resistance 15MΩ Max, After swapping 40MΩ Max
Withstand Voltage 250V AC
Working Voltage 100V DC
Working Current ≤ 1.5A DC

Environment

Characteristics

 Working temperature -40 ℃ - +105℃

Advantages:

• high abrasion and corrosion resistance;

• excellent intermodulation;

• low contact resistance;
