SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm
SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm
SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm
SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm
SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm
SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm
Specifications
Certification :
ISO9001, IATF16949
Place of Origin :
China
MOQ :
1000 pcs
Supply Ability :
10k daily capacity
Delivery Time :
2 weeks
Packaging Details :
poly bag
Type :
SMB
Material :
brass
Insulator :
PTFE
Impedance :
50 ohm
gender :
male type
application :
autmotive, GPS, TBOX
Description

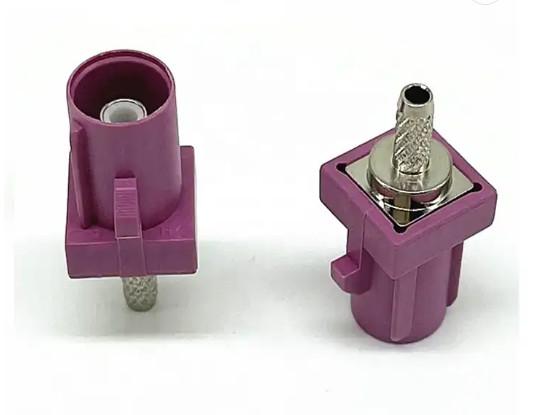

Waterproof FAKRA plug male connector for GPS Antenna pigtail cable 1.37mm

DESCRIPTION:

FAKRA connector is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.

Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure
The connector is be protected by the cap .
Easy to assembly
Many difference between the connector and the cap.
The product technical characteristics:
Body Brass, Ni-plated
Socket beryllium-copper, Gold-plated
Pin contact Brass
Insulator PTFE
Crimp ferrule brass, Ni-plated
O-ring beryllium-copper
Shell PA66+30%GF
Technical characteristics:
Impedance 50Ω
Frequency Range 4GHz
Withstanding Voltage 1000V(RMS)
Contact resistance:
Center contact ≤ 20m
Outer contact ≤10m
Insulation ≥1,000MΩ
VSWR DC - 2GHz<1.2
Mechanical characteristics:
Assembly locked
Durability ≥ 500 cycles
Temperature -40 ~ +85°C

SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm

SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm

SMB 50 Ohm Male FAKRA HSD Connector For GPS Antenna Pigtail Cable 1.37mm
