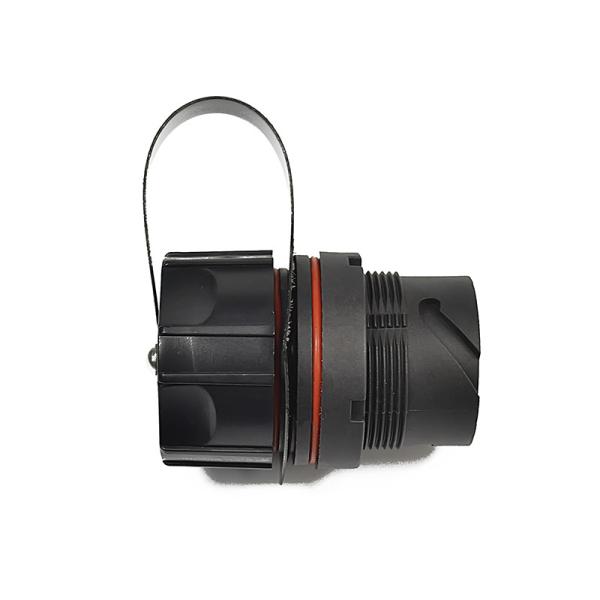

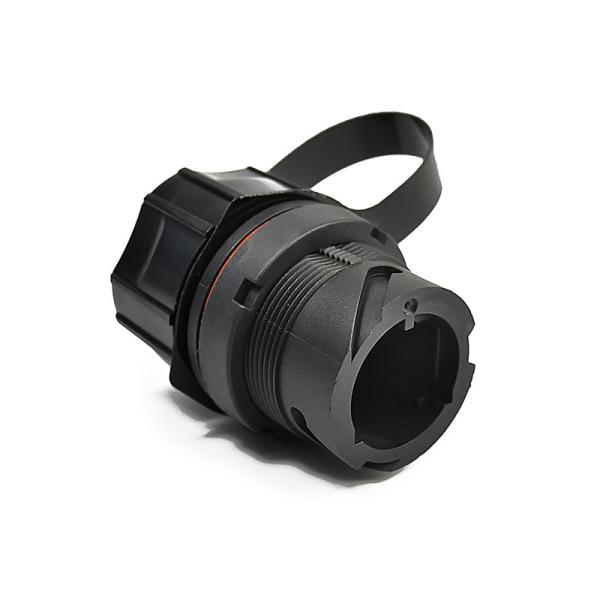

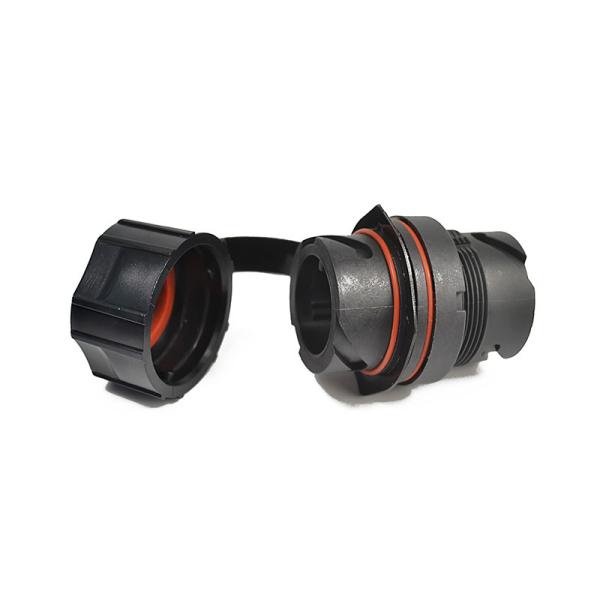

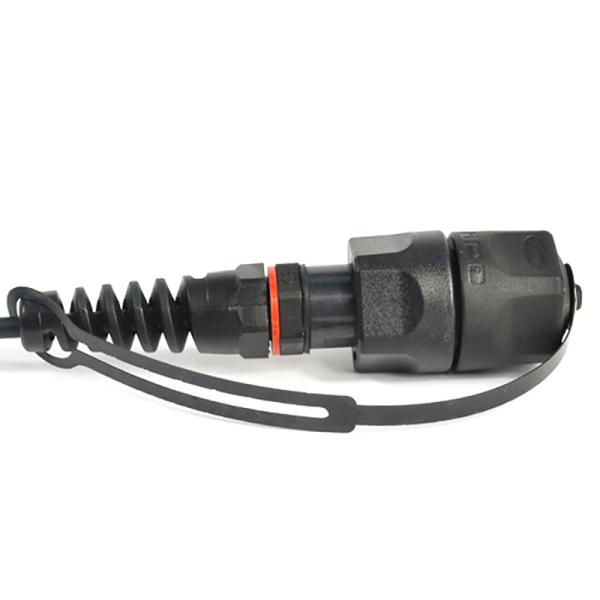

Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
Specifications
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
500 pcs
Supply Ability :
5k daily capacity
Delivery Time :
2 weeks
Packaging Details :
poly bag
Material :
PBT
Waterproof grade :
IP67
Apllication :
FTTX
Mechanical life :
500 cycles
Working temperature :
-40-+70 degree
Connectors :
ODVA, MPO, LC, SC
Description

Outdoor Waterproof IP67 (MPO LC SC) ODVA Adapter FTTX

Quick Details

Place of Origin: Guangdong, China

Model Number: ODVA

Type: Fiber Adapter & Connectors

No. of Fiber: 1,2,12,24

Use: FTTX

Connector type: Outdoor Waterproof IP67 (MPO LC SC) ODVA Adapter

Insertion Loss: <0.3db

Return Loss: SM/UPC≥50dB, SM/APC≥60dB, MM≥35dB

Cable jacket size: 7.0mm, 4.8mm

Cable Color: Black

Cable material: LSZH, PE

Mechanical life: 500cycles

Working temperature: -40°C~+70°C

Protection level: IP67

Tensile: ≥100N

APPLICATIONS

Fiber optic adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.

FEATURES

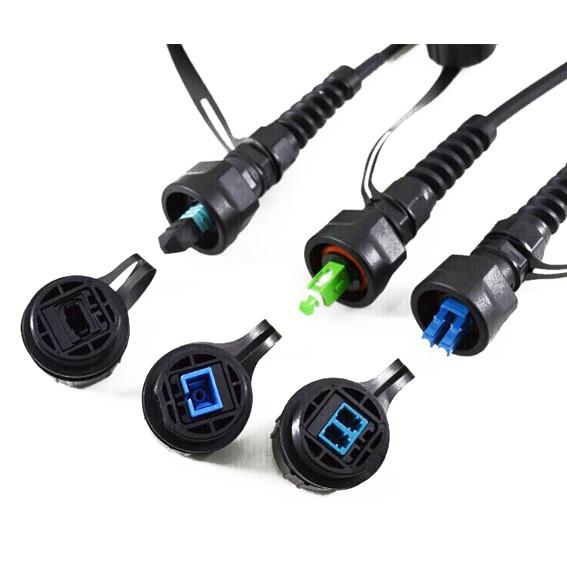

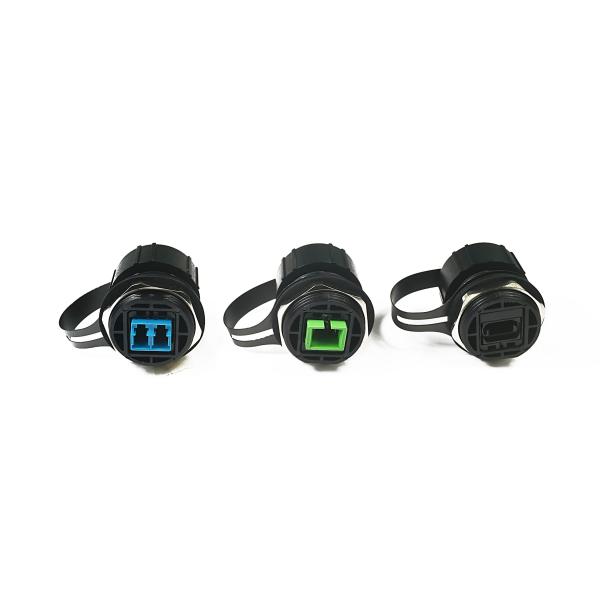

1.Various types:it has 3 series:LC duplex,SC simplex,and MPO.
2.Fast connection:the unnique spira structure makes connection easy and fast.
3.Hign intensity of tension:it is suitable for fiber cables of φ5-φ7MM
4.Water and dust proof:there is rubber cushion inside,the stability is good and the grade can be IP67.
5.Complete solutions:we have the related complete outdoor waterproof of boxes,adapters and solutions.

Outdoor Waterproof Fiber Connectors IP67 MPO LC SC ODVA Adapter FTTX
