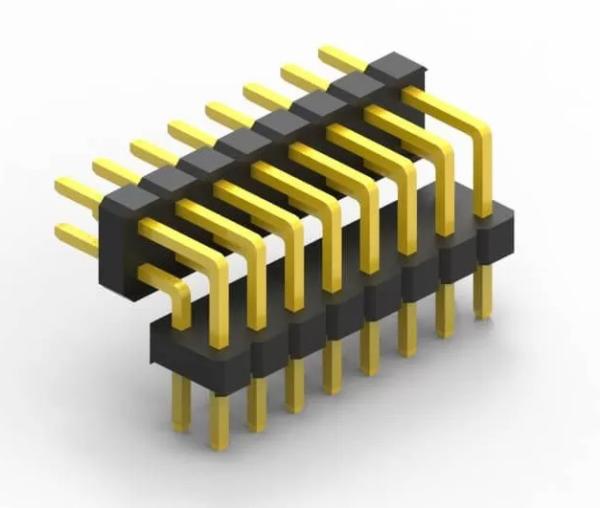

2.54mm Pitch Dual Row Male Pin Header Connectors 4pin To 80pin
2.54mm Pitch Dual Row Male Pin Header Connectors 4pin To 80pin
2.54mm Pitch Dual Row Male Pin Header Connectors 4pin To 80pin
2.54mm Pitch Dual Row Male Pin Header Connectors 4pin To 80pin
Specifications
Certification :
ISO9001, IATF16949, ISO14001
Place of Origin :
China
MOQ :
5000 pcs
Payment Terms :
T/T
Supply Ability :
20k daily capacity
Delivery Time :
2 weeks
Packaging Details :
tube, tape and reel, polybag,
Material :
PBT, PA6T, brass, phospher
rated current :
3A
operating temperature :
-40--+105 degree
Plating :
tin or gold plated
Color :
black
Type :
board to board
Description

2.54mm Pitch Male Pin Header Connector Dual Row 4pin to 80pin

Specifications:

Products Name Pin Header/PCB Connector
Pitch 2.54mm(0.1'')
Packaging Bulk
Current Rating 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000MΩ Min
Operation Temperature -40℃ to +105℃
Contact Material Coppy alloy
Contact Plating Au or Sn Over Ni
Insulator Material PA6T or PBT+30%GF(UL94V-0)
Mounting Type Through Hole
Termination Solder
Pin Size 0.64mm Square Pin
Color Black Or Customized

Why Choose Shinelinkconn:

1. High-Quality Guarantee

Shinelinkconn has been focusing on improving the Quality Control Systems, aiming at providing high-quality products that fit ISO9001 Certificate for years.

2.Competitive Price

We have a whole set production process which include electroplating, stamping, injection molding, assembly to ensure our competitive price.

3. Customized Packaging

All the products are available for customized packaging according to your demand.

4. Fast Delivery

Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.

Product Application:

Male pin header is widely used in different industries such as automotive, industrial devices, medical equipment, computer and so on.
