Equivalent To JST JWPF Wafer Connector Wire To Board Connector PBT 2-8PIN
Equivalent To JST JWPF Wafer Connector Wire To Board Connector PBT 2-8PIN
Equivalent To JST JWPF Wafer Connector Wire To Board Connector PBT 2-8PIN
Equivalent To JST JWPF Wafer Connector Wire To Board Connector PBT 2-8PIN
Equivalent To JST JWPF Wafer Connector Wire To Board Connector PBT 2-8PIN
Equivalent To JST JWPF Wafer Connector Wire To Board Connector PBT 2-8PIN
Specifications
Certification :
ISO9001, IATF16949
Place of Origin :
China
MOQ :
1000 pcs
Supply Ability :
10k daily capacity
Delivery Time :
2 weeks
Packaging Details :
poly bag, tube
plastic housing :
PBT natural
contact material :
brass
current rated :
3A
rated voltage :
100 V AC/DC
temperature range :
-40-+85 degree
contact resistance :
10m ohm max
insulation resistance :
1000M ohm min
Description

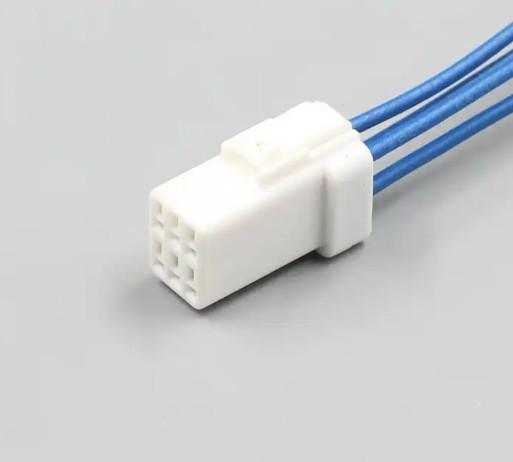

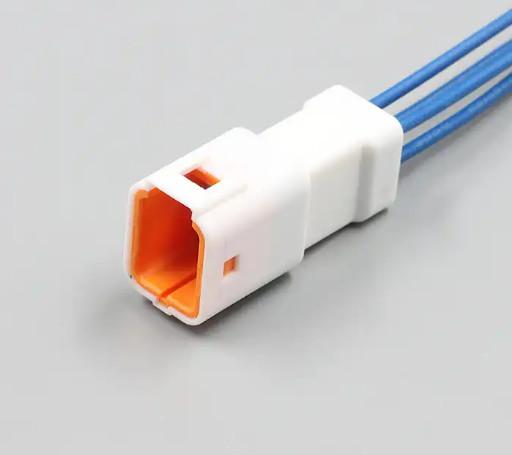

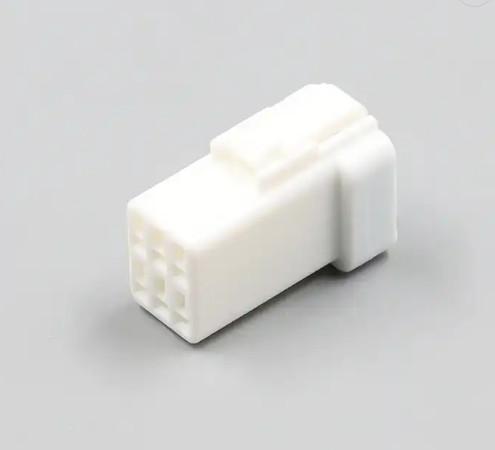

equivalent to JST JWPF 2.0mm pitch wire to board connector housing terminal header PBT 2-8PIN vertical single dual row

Specifications:
Material And Finish:
Insulator:PBT UL94V-0 Color:Natural(White)
Contact:Copper Alloy


Rating:
Current Rating:3.0A AC/DC(AWG#22)
Voltage Rating:100V AC/DC
Operating Temperature Range:-55°~+85°C


Electrical:
Contact resistance:Intial value 10mOhm Max.
After environmental tests 15mOhm Max.
Insulation resistance:1000M ohm min.
Withstanding Voltage:1000V AC/Minute


Applicable wire:AWG#26 to #22 0.13 to 0.33 mm²
Insulation O.D/1.4 to 1.7 mm


Waterproof grade:
Grade 7 ingress protection of JIS C0920
(IPX7 of IEC 60529)

Equivalent To JST JWPF Wafer Connector Wire To Board Connector PBT 2-8PIN

Equivalent To JST JWPF Wafer Connector Wire To Board Connector PBT 2-8PIN
