Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Specifications
Brand Name :
WAGO
Model Number :
2065-100/998-403
Place of Origin :
China
MOQ :
2000 PCS
Price :
RMB 1 PCS
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Month
Delivery Time :
5-8 Days
RATED VOLTAGE(III/2) :
320 V
RATED SURGE VOLTAGE (III/2) :
4kV
RATED VOLTAGE(II/2) :
630 V
RATED SURGE VOLTAGE (II/2) :
4kV
rated current :
9 A
RATED VOLTAGE UL 1977 :
600 V
RATED CURRENT UL 1977 :
9 A
Description

Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel

Press Bottom Push In Waterproof Led Connector 2065-1P SMD Led Quick Connector

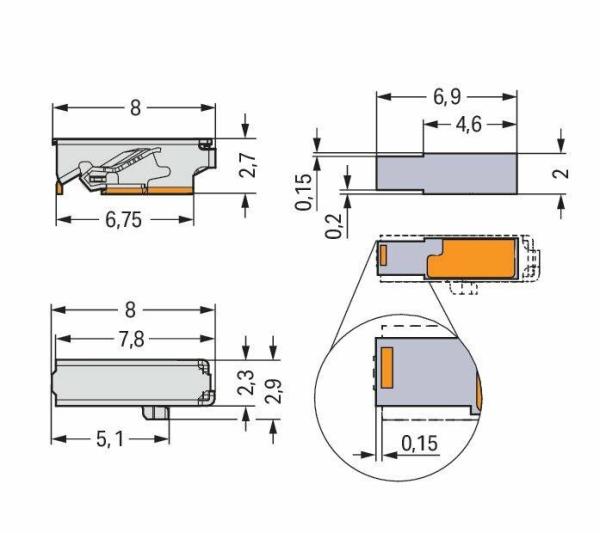

Geometrical Data

needle spacing

6.5 mm / 0.256 inch

width

2.9 mm / 0.114 inch

height

2.7 mm / 0.106 inch

depth

8 mm / 0.315 inch

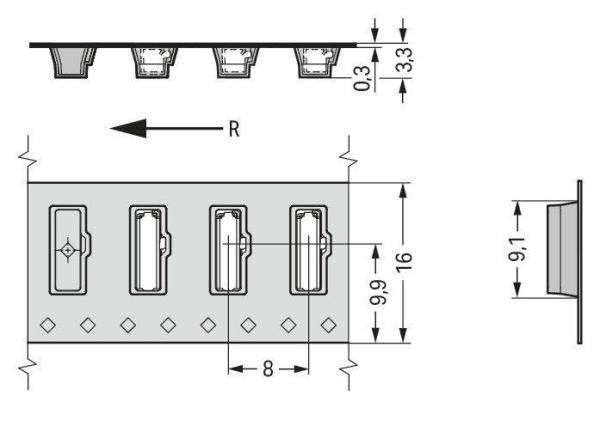

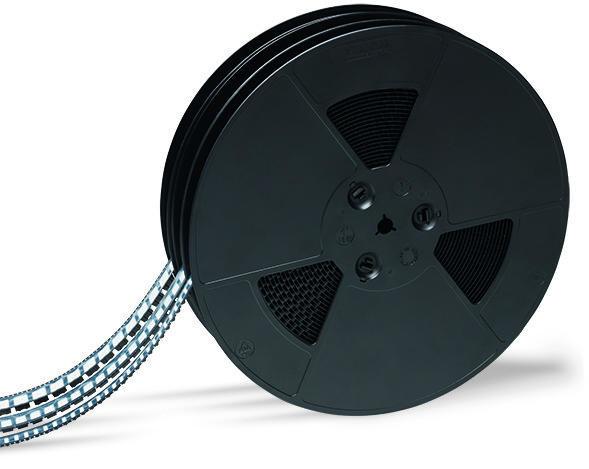

reel belt packaging diameter

330mm

bandwidth

16mm

material parameters

color

argent

clamp the spring material

Chrome nickel spring steel (CrNi)

contact material

copper alloy

contact plating

tinning

weight

0.3g

Explain

Because the specific temperature and time of reflow soldering will vary, the wiring terminals may have a certain color deviation. However, it will not affect the use function of the wiring terminal.

Application Description:

This product is suitable for the lead-free reflow soldering process. According to DIN EN 61760-1 and DIN EN 60068-2-58 standards, the maximum temperature it can withstand is 260 ℃. As the components to be processed for specific applications vary in specifications, structures, accuracy, etc., and the welding machines and fluxes used by users are different, we recommend users conduct tests before formal welding to ensure a high fit between products and production processes.

Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
