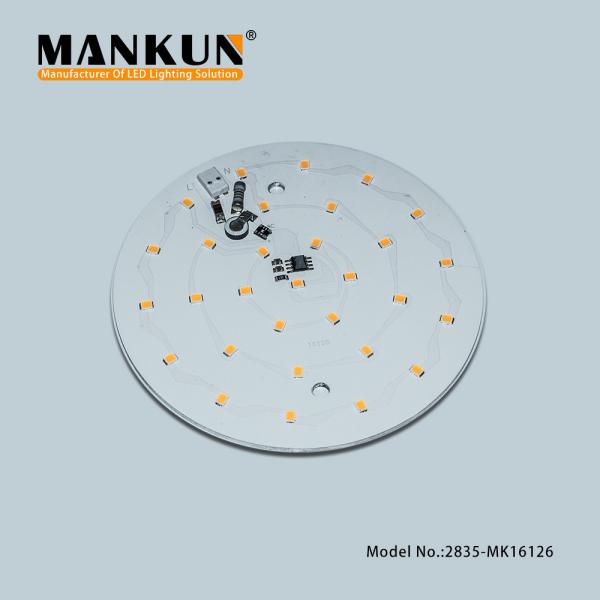

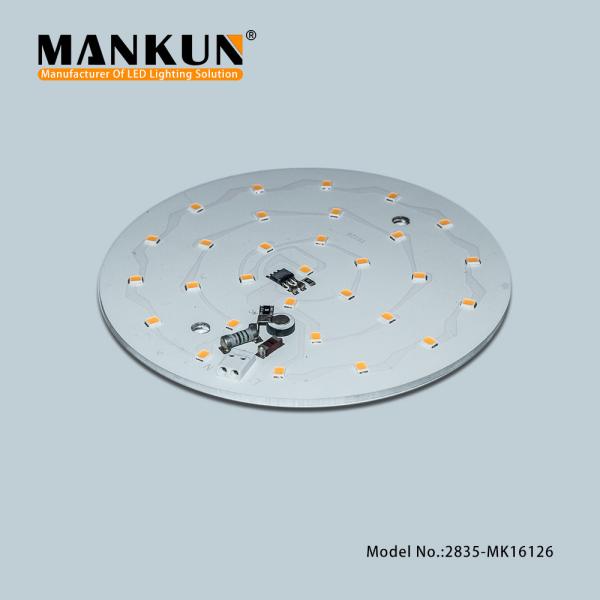

DC12V Round Board SMD 2835 LED Module For Downlight Panel Light
DC12V Round Board SMD 2835 LED Module For Downlight Panel Light
DC12V Round Board SMD 2835 LED Module For Downlight Panel Light
DC12V Round Board SMD 2835 LED Module For Downlight Panel Light
DC12V Round Board SMD 2835 LED Module For Downlight Panel Light
DC12V Round Board SMD 2835 LED Module For Downlight Panel Light
DC12V Round Board SMD 2835 LED Module For Downlight Panel Light
DC12V Round Board SMD 2835 LED Module For Downlight Panel Light
Specifications
Brand Name :
MANKUN
Model Number :
16126
Certification :
UL,CE,ROSH
Place of Origin :
China
MOQ :
500PCS
Payment Terms :
Negotiable
Supply Ability :
100000pcs per month
Delivery Time :
7-15 work days
Packaging Details :
neutral package
Product name :
Led Module
Warranty :
2-5 Years
Color rendering index(ra) :
80
Color temperature :
5000K
Emitting color :
warm white
Chip material :
Epistar
Application :
indoor ad.
Voltage :
DC 12V,DC12V
Description

DC12V Round Board SMD 2835 LED Module For Downlight Panel Light

DC12V Round board Smd 2835 Led PCB Module For Downlight Panel Light

PCBA Capability

SMT Lines

7 Lines

Capacity

8 Million Placements Per Day

Max Board Size

680*550mm Smallest:0.25"*0.25"

Min Components size

0201-54 sq.mm (0.084 sq.inch),Long Connector,CSP,BGA,QFP

Speed

0.15sec/chip, 0.7sec/QFP

Wave-Solder

Max.PCB Width:450mm

Min.PCB Width:unlimited

Components Height:Top 120mm/Bot 15mm

Sweat-Solder

Metal Types:Part,Whole,Inlay,Side-step

Metal Material:Copper,Aluminum

Surface Finish:Plating Au,Plating Silver,Plating Sn

Air Bladder Rate:less than 20%

Press-fit

Press Range:0-50KN

Max.PCB Size:800*600mm

Assembly Types

SMT and Thru-hole

Solder Type

Water Soluble Solder Paste,Leaded and Lead-Free

File Formats

Bill of Materials ,Gerber Files,Pick-N-Place Files(XYRS)

Type of Service

Turn-Key,Partial Turn-Kye or Consignment

Component Packaging

Cut Tape,Tube Reels Loose,Parts

Turn Time

1-15days

Testing

XRAY Inspection,AOI Testing ICT,Flying Probe,Burn-in,Function Test

Technical Specifications :

Color Temperature(CCT)

3000K/4000K/6000K

Input Voltage(V)

DC 12V

Warranty(Year)

2-Year

Type

LED Modules

Luminous Efficacy(lm/w)

80

Product Weight(kg)

0.1

Luminous Flux(lm)

1920

Power

15W

Place of Origin

China

LED Type

Samsung SMD 2835

LED QTY

65PCS

Material

Aluminum PCB

Size

D140mm

Features:

1. Linear constant current IC control.

Photoelectric integration design with stable performance, high reliability and long lifespan.


2. Over-voltage & over-current protection.
With optimized constant power IC design, when input voltage varies between AC 24 and 48V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.


3. Over-temperature protection design.
When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.


4. High quality 2835 LED with high color rendering index. Ra > 80.


5. Customized design and Manufacturing.
Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs and so on.
