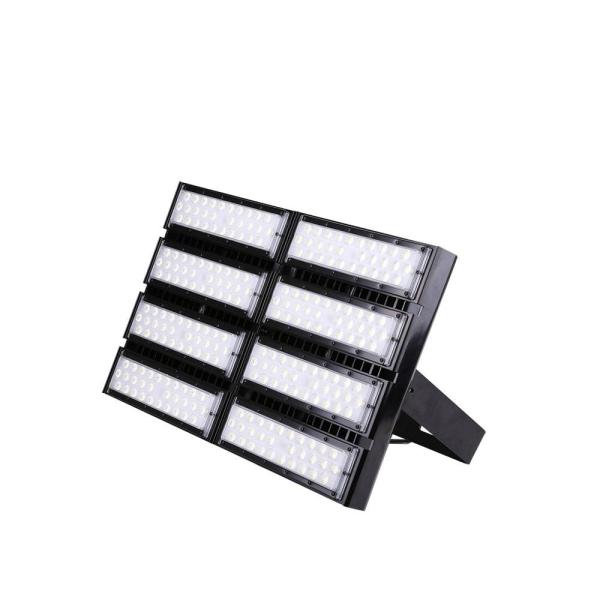

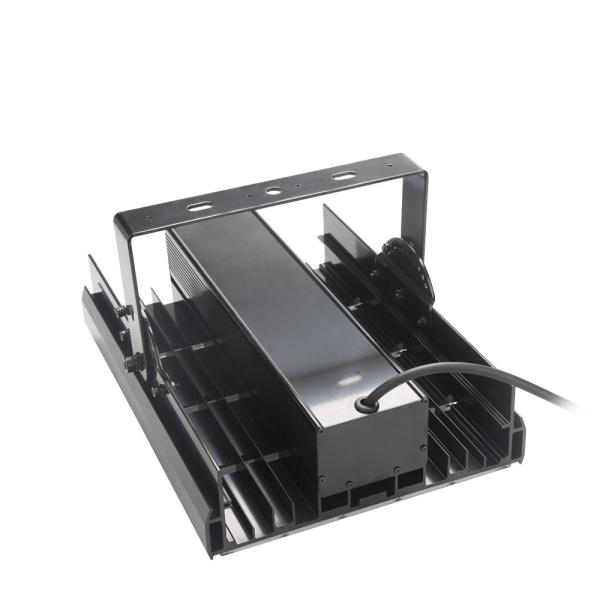

500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light
500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light
500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light
500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light
500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light
500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light
500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light
500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light
Specifications
Brand Name :
ManKun
Certification :
ROHS UL
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10000 SET /Month
Delivery Time :
10-15 work days
Packaging Details :
Single item
Power :
500W
Color Rendering Index(ra) :
>70
Light effect :
160 lm/w
Application :
Street light; flood light
Working lifetime(hour) :
80000
Ip rating :
IP67
Item type :
Flood Lights
Color temperature(cct) :
3000K-5000K
Description

500W Outdoor IP67 Waterproof Street Light Motion Sensor Flood Light

5 Years Warranty Led Street Light Motion Sensor Flood Light Outdoor CB Approved​

The features of 50w-200w led flood light series.

Part Number

LY-HB0601

LY-LHB0602

LY-HB0603

LY-HB0604

Wattage

50w

100W

150W

200W

Lumen Output

7500-8000lm

15000-16000lm

22500-24000lm

30000-32000lm

Luminous Efficacy

150-160lm/W

150-160lm/W

150-160lm/W

150-160lm/W

Input Voltage

90-305V AC/200-240V AC 50-60Hz

Beam Angle

10°/25°/45°/60°/90°/145x90°/150x70°

CCT

2800~6500K

CRI

≥70 or ≥80

IP & IK Rating

IP66&IK10

Surge protection

Line earth 4KV, Line-line 10KV/20KV available

Power factor

>0.95

Power efficiency

88%

92%

92%

92%

THD

<15% or <20%

Working temperature

-40℃~50℃ 20%~90% H.R

Storage temperature

-40℃~85℃ 10%~90% H.R

Housing material

AL6063-T5

Housing color

Black

Insulation

Class 2

Options

PWM /DALI/1-10V/Timming

Lifespan

>50,000Hrs

Lamp size

260*105*195mm

260*168*195mm

260*258*195mm

348*260*195mm

Packing

4pcs/ctn

450*280*215mm

3pcs/ctn

600*310*255mm

2pcs/ctn

585*310*255mm

1pcs/ctn

400*310*255mm

N.W.

2.5kg

3.0kg

4.0kg

5.0kg

The features of 250w-500w led flood light series.

Wattage

LY-HB0605

LY-HB0606

LY-HB0608

LY-HB0610

Lumen Output

250W

300W

400W

500W

Luminous Efficacy

37500-40000lm

45000-48000lm

60000-64000lm

75000-78000lm

Input Voltage

150-160lm/W

150-160lm/W

150-160lm/W

150-160lm/W

Beam Angle

10°/25°/45°/60°/90°/145x90°/150x70°

CCT

2800~6500K

CRI

≥70 or ≥80

IP & IK Rating

IP66&IK10

Surge protection

Line earth 4KV, Line-line 10KV/20KV available

Power factor

>0.95

Power efficiency

92%

92%

92%

92%

THD

<15% or <20%

Working temperature

-40℃~50℃ 20%~90% H.R

Storage temperature

-40℃~85℃ 10%~90% H.R

Housing material

AL6063-T5

Housing color

Black

Insulation

Class 2

Options

PWM /DALI/1-10V/Timming

Lifespan

>50,000Hrs

Lamp size

438*260*195mm

520*258*195mm

520*348*195mm

520*438*195mm

Packing

1pcs/ctn

490*310*255mm

1pcs/ctn

570*310*255mm

1pcs/ctn

570*400*260mm

1pcs/ctn

570*490*255mm

N.W.

6.0kg

9.0kg

11kg

13kg

Using neutral packing cartons, also accept customize packing as clients' requirements.

Power

Packing size

Gross weight

Packing way

50W

32 * 21 * 22 cm

4.5 kg

2pcs/carton

100W

34 * 25 * 16 cm

3.8 kg

1pcs / carton

150W

34 * 30 *16 cm

4.9 kg

200W

39 * 34 * 16 cm

6.0 kg

300W

64 * 32 * 18 cm

9.6 kg

400W

64 * 43 * 18 cm

12.0 kg

Trade terms

> Trade Term: EXW, FOB, CIF, DDU. DDP.

> MOQ: 1pcs

> Sample Availability: Yes

>Payment: T/T, Western Union, Paypal

> Normal Lead Time: 7 days for sample order; 15 days for bulk order

> Payment Terms: 30% before production, 70% before delivery

> Discount: For bulk order.

> Port: Shenzhen

> Shipment: By Sea / Air / Express
