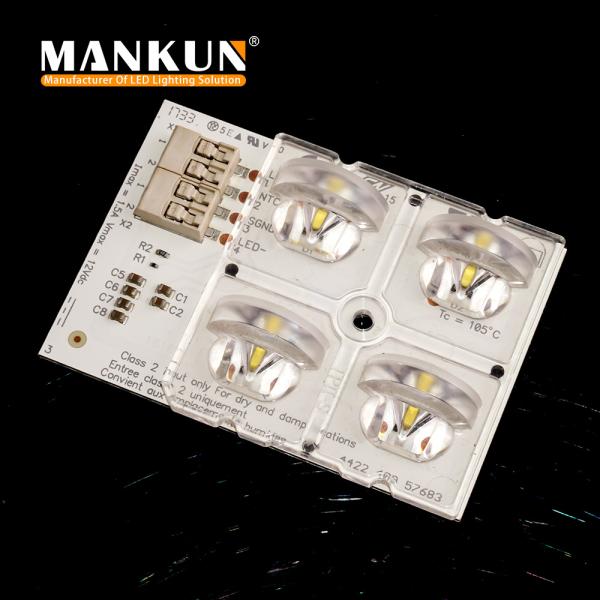

10Watt LED Street Light Module 72X49mm PCB With Smd3737 4X1 Leds
10Watt LED Street Light Module 72X49mm PCB With Smd3737 4X1 Leds
10Watt LED Street Light Module 72X49mm PCB With Smd3737 4X1 Leds
10Watt LED Street Light Module 72X49mm PCB With Smd3737 4X1 Leds
10Watt LED Street Light Module 72X49mm PCB With Smd3737 4X1 Leds
10Watt LED Street Light Module 72X49mm PCB With Smd3737 4X1 Leds
Specifications
Brand Name :
mankun
Model Number :
AL16161
Certification :
ce, RoHS, ce, RoHS
Place of Origin :
Guangdong, China
MOQ :
1000 Sets
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
100000pcs per Month
Delivery Time :
5-10 work days
Packaging Details :
LED module bubble packaging, 10PCS each box, 100PCS a box
Color Temperature(CCT) :
4000K CCT
Input Voltage(V) :
12VDC
Type :
Street Light LED Modules
Light source :
SMD3737 LED 4PCS
PCB size :
72*49*1.6mm
Power :
10W
Description

72X49mm PCB With Smd3737 4X1leds For 10W Led Street Light Module

Specification of LED street light module

Power: MK5050-4H-AL16161
PCB Size: 72*49*1.6mm
LED: 4pcs Lumileds LED 3737
CRI: ≥83±5Ra
Lumen efficiency: 161 lm/W
Lumen output: 1600 lm
Lumen depreciation: 5
CCT: 4000K
Voltage: 12V
PCB Material: Aluminum base
Bean angle: 120°
Package: blister package
Certificate: CE, RoHS
Application: led street light, flood light, Tunnel light, High bay light

One-Stop Service of LED street light module

* Tell us your need as clearly as possible, usually we could answer all your questions and do all the rest things.

* Free Sample.

* We could make samples for free if your need is exactly clear.

* PCB Copy.

* Send us the sample, and we could make a copy which would save you costs.

* PCBA and enclosure design.

* Tell us your idea and requirements, and our professional sales will understand you quickly and make your need clear on paper.

* PCB manufacturing.

* We have our own machine&equipment to make the PCB within 1 week while the Gerber file is offered or confirmed.

* Component sourcing & Purchasing.

* We have cooperation with many IC components and LED chip manufacturers which could control the cost.

* PCBA 100% test.

* Every unit will be tested and aged for your order.


FAQ of LED street light module?

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample orders to test and check quality.

Q2. What about the lead time?

A: Sample needs 2-3 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for the led light orders?

A: Low MOQ, 1pc for sample checking is available.

Q4: Do you offer a guarantee for the products?

A: Yes, we offer a 3-5 years warranty on our products.

Q5: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
