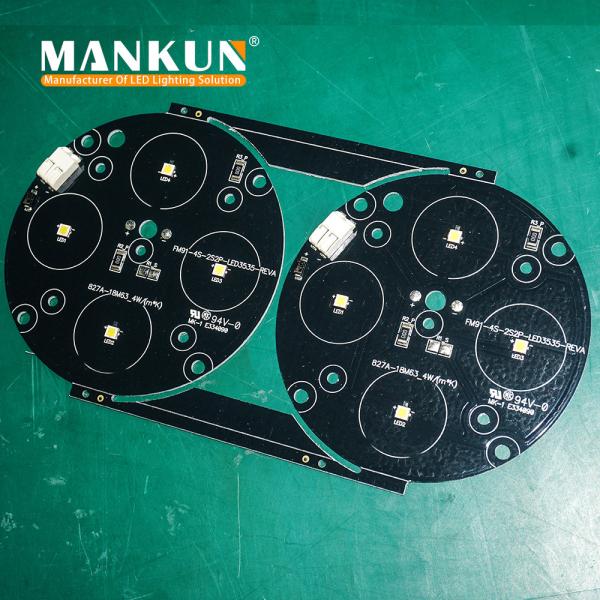

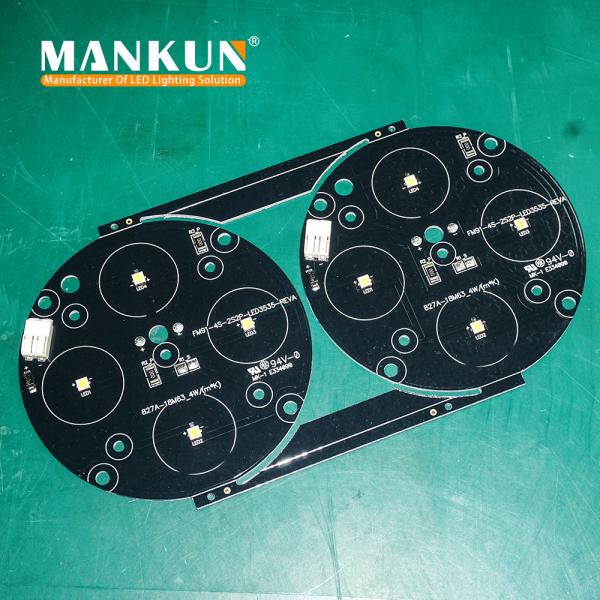

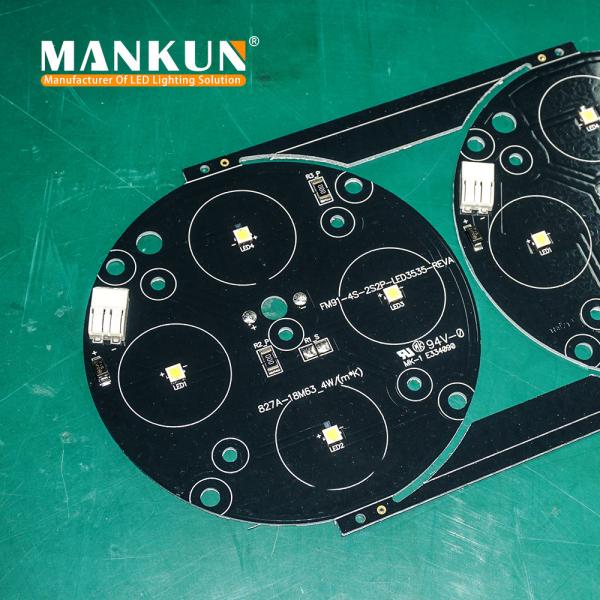

Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
Specifications
Brand Name :
mankun
Model Number :
AL18971
Certification :
ce, RoHS
Place of Origin :
Guangdong, China
MOQ :
3000 Sets
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
5-30 work days
Packaging Details :
Negotiation
Item Type :
Led Track Light PCB Module
Input Voltage :
6V
Lamp Body Material :
Aluminum Base
PCB Dimensions :
90*90*1.6mm
LED Type :
SMD3535 4PCS Chip
Power :
12W
Color Temperature :
3500K-6500K CCT
Color Rendering Index :
Ra >80
Description

Low Voltage Round PCB LED Module Sources For Motorized Led Track Light

Specification of PCB LED Module

Product Type: PCB with LED Maximum Panel Size 1470mm*600mm
Finished Board Thickness: 0.4mm to 0.4mm Copper Thickness 0.5oz,1oz,2oz,3oz
Thickness Tolerance: +/-10% Min.Finish hole size 0.2 mm
Min.Track Width: 0.2mm(8mils) Min.Track gap 0.2mm(8miles)
Min.SMD pad pitch: 0.2mm(8mils) Dielectric Thickness(to Substrate) 0.05mm,0.075mm,0.1mm,0.15mm,0.2mm
Substrate Core Thickness: 0.4mm ,0.6mm 0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,3.0mm,3.2mm
Aluminum Machining: Drilling, Tapping, Milling, Routing, Die-Punching, break-off tab available
Max.working voltage: 2.5K VDC(0.75mm Dielectric)3.75K VDC(0.15mm Dielectric)
Solder mask color: White, LED light special White, Black, MATT Black, others Available

Products Advantage of PCB LED Module

1. Adaptability LED light strips can be adapted for almost any task, big or small.
2. Easy installation
Installing individual lights one by one can be a difficult task, especially when a vast number of lights are required. Installing
strip lights are extremely easy and require very little expertise.
3. Long Lasting
LED lights last longer than most other bulbs. If a fluorescent light lasts for 10,000 hours, and an incandescent for 1500, LED light strips dwarf this number by lasting for a potentially staggering 60,000 hours.
4. Color Options
LEDs provide a wide range of different colors from cold whites to warm yellows, oranges, and reds.
5. Cutting
LED Strip Lights are one of the few types of lighting in existence that can be cut.
6. Low Voltage
LED Strips are a type of low-voltage LED product, making them safer to use and less of a risk.
7. Mobility
LED light strips can be powered by a small battery, allowing them to place almost anywhere.
8. No Glas
Many LEDs are covered in a plastic shell. This is much safer than other bulbs, as there is no glass to smash.
9. Savings
Due to the low amount of energy they consume, and their longevity, LEDs tend to reduce overall lighting, costs substantially.​

FAQ of Dimmable LED Module

Q1:Can I have a sample to test?

A: Yes, we are pleased to supply samples to test and check the quality, mixed sample order is available. free samples are also acceptable.

Q2:What about the lead time?
A: Sample needs 3-5days, mass production time needs 1-2weeks.

Q3:Are you a manufacturer or trading company?
A: Our company is a professional Led Tape/ Strip light manufacturer, we have our own factory which is located in Guangzhou China.

Q4. Is it OK to print my logo on an led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, and TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q6. What payment can you accept?
A: We are so glad that you can pay by T/T, and of course, you can also pay by L/C, Western Union, or PayPal.
Low Voltage Round PCB LED Module Sources For Motorized Led Track Light
