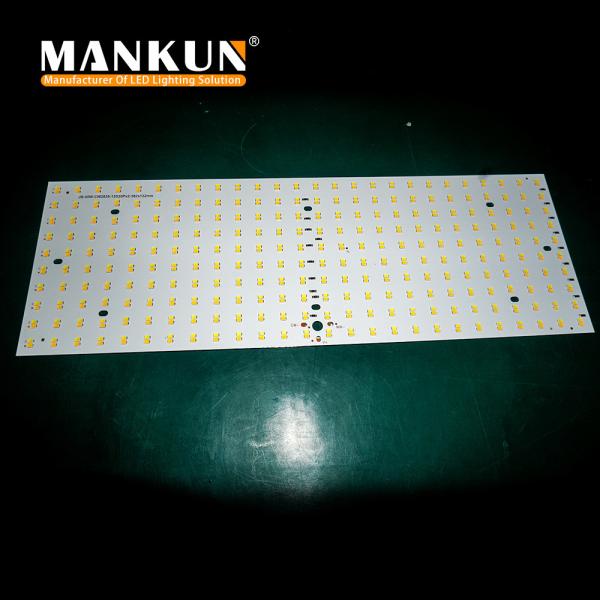

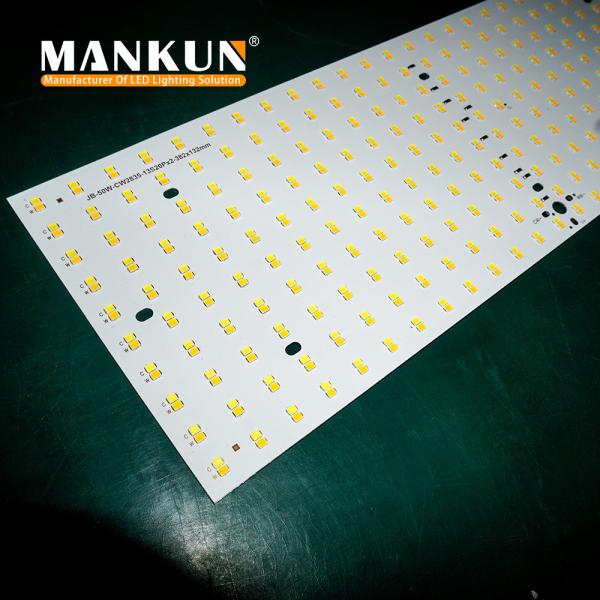

50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
Specifications
Brand Name :
mankun
Model Number :
JB-50W
Certification :
ce, RoHS, ce, RoHS
Place of Origin :
Guangdong, China
MOQ :
1000 Sets
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
100000pcs per Month
Delivery Time :
5-10 work days
Packaging Details :
LED module bubble packaging, 10PCS each box, 100PCS a box
Color Temperature(CCT) :
3000K+5000K CCT
Maximum Voltage(V) :
40V
Light source :
SMD2835 LED 520PCS
PCB size :
382*132*1.6mm
Power :
50W
Cri (ra>) :
80
Description

SMD 2835 Source Led Panel Light 50W Double Color Led Ceiling Light Led Module

Specification of Ceiling Light led module

Product name: 50w Double color led module

Color rendering index: Ra 70/80/90/95

Maximum current: 1250mA

Maximum voltage: 40VDC

Power: 50W

Chip: SMD 2835 260PCS X2

PCB Size: 382*132*1.6mm

Substrate: Copper 1.6mm thickness

Wire bonding: Gold wire

Glue: Shin-Etsu silicon

Color temperature: 3000K+5000K CCT

Main application: Stage light, video film lamp, spotlight, moving head light, photographic lamp, floodlight, high bay light, garden light, etc.

Warranty: 1 year, 2 years, 3 years, 5 years, to be negotiated

Keyword: Low moq dc cob custom led chip

Delivery time: Samples 1-3 working days, bulk order 7-20 working days

Payment item: T/T, Western Union, PayPal, Alibaba trade assurance

Features of Ceiling lighting-led module

Power: 50W
PCB Size: 382*132*1.6mm
LED: 520pcs LumiLEDs LED 2835
CRI: ≥85±5Ra
Lumen efficiency: 140 lm/w
Lumen output: 7000 lm
Lumen depreciation: 5
CCT: 3000K+5000K
MAXimum Voltage: 40V
PCB Material: Aluminum
Bean angle: 120°
Package: blister package
Certificate: CE, RoHS
Application: led ceiling lighting, Indoor lighting, all lighting


FAQ of Ceiling Lighting led module

1. Q: Are you a manufacturer or trade company?
A: We are the Manufacturer.

2. Q: How can I get the samples?
A: Free sample. We appreciated that you can accept to pay the sample freight.

3. Q: How much is the transportation freight of samples?
A: The freight depends on the weight and packing size, as well as your area.

4. Q: When's the delivery time for the sample?
A: The samples will be ready for 3-7 days.

5. Q: Do you offer OEM&ODM service?
A: Yes, we do.

6. Q: How does your factory control quality?
A: Quality is the most important part for us. At our ISO 9001:2000-certified factory, we conduct strict QC procedures to ensure each unit is up to your quality standard.

7. Q: How to pay the money?
A: We could accept the payment by T/T or Western Union. Please tell us the payment that you prefer, we will send the detailed information to you.

50W Double Color Ceiling Light LED Module SMD 2835 Source Led Panel Light Module
