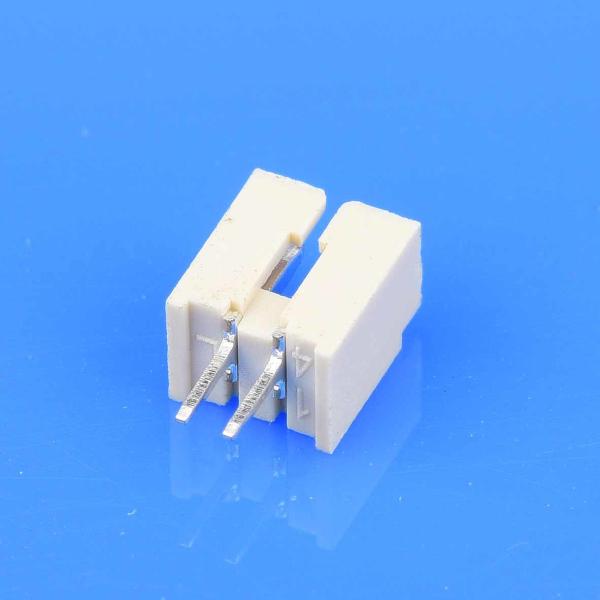

1.25mm Pitch Straight DIP PCB Mount Connector 2P To 25P Wafer Connector RoHS
1.25mm Pitch Straight DIP PCB Mount Connector 2P To 25P Wafer Connector RoHS
1.25mm Pitch Straight DIP PCB Mount Connector 2P To 25P Wafer Connector RoHS
1.25mm Pitch Straight DIP PCB Mount Connector 2P To 25P Wafer Connector RoHS
Specifications
Brand Name :
Alinta
Model Number :
AL-X2201-S
Certification :
RoHS
Place of Origin :
China
MOQ :
1000
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
25kk per month
Delivery Time :
5~8 working days
Packaging Details :
Tape & Reel
Product Name :
Wafer, Wire-to-Board Receptacle
Positions :
2~25P
Application :
PCB
Housing :
LCP, UL94V-0
Contact :
Brass, sn-plated
Orientation :
Verticle
PCB Mount :
DIP
Description

Product Descriptiom

A wire-to-board connector is a type of electrical connector used to connect wires to a printed circuit board (PCB). It consists of two main components: the housing and the contacts. The housing is usually mounted on the PCB and contains slots or receptacles where the contacts are inserted. The contacts are typically crimped onto the wires and then inserted into the housing, creating a secure electrical connection between the wires and the PCB.

These connectors are commonly used in various electronic devices and applications where it's necessary to connect wires to a circuit board, such as in computer peripherals, automotive electronics, industrial machinery, and consumer electronics. They come in different sizes, configurations, and specifications to accommodate various wire gauges, current ratings, and environmental conditions.

1.25mm Pitch Straight DIP PCB Mount Connector 2P To 25P Wafer Connector RoHS

Alinta Wire-to-Board Connector Series

Discover reliable Wire-to-Board (WTB) connectors and cable assemblies from Alinta, offering pitch sizes ranging from 1.0mm to 6.35mm. Our connectors cater to diverse industries, including automotive, appliances, industrial, data & telecommunications, and consumer electronics.

Benefit from a wide array of advantages with our WTB connectors, making them an optimal choice for various applications. Enjoy the flexibility of customization options to tailor the connectors precisely to your requirements.

X2201-S (Straight Pin Wafer Connector)

Technical Parameter

X2201-S Straight Pin Wafer Connector Dimension

1.25mm Pitch Straight DIP PCB Mount Connector 2P To 25P Wafer Connector RoHS 1.25mm Pitch Straight DIP PCB Mount Connector 2P To 25P Wafer Connector RoHS

X2201 Series Image (Receptacle/ Wafer+Housing+Terminal)

1.25mm Pitch Straight DIP PCB Mount Connector 2P To 25P Wafer Connector RoHS

For a dependable and customizable WTB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.
