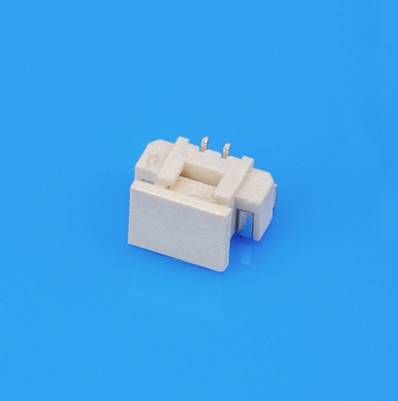

Alinta 1 Mm Pitch Wire To Board Connector 2P~20P SMT Wafer WTB Connector
Alinta 1 Mm Pitch Wire To Board Connector 2P~20P SMT Wafer WTB Connector
Alinta 1 Mm Pitch Wire To Board Connector 2P~20P SMT Wafer WTB Connector
Alinta 1 Mm Pitch Wire To Board Connector 2P~20P SMT Wafer WTB Connector
Specifications
Brand Name :
Alinta
Model Number :
AL-X2201 series
MOQ :
1000
Payment Terms :
T/T
Supply Ability :
25KK
Description

AL-X2201 connector series (pitch 1.0mm) includes plug (housing), socket (wafer) and terminals. The product series has DIP and SMT package type. Circuits range form 2 to 20, with single row or double row. X2201 connector 1.0mm Pitch is replacement of JST NH connectors. It’s widely used in wire to board connectors. With high connection reliability, this series is widely used in notebook computers, digital products and other products that need small footprint.

Matching Housing: ALX1002H-XP (1.00mm Pitch,Housing)

Product Data:

  • General Features Category Wire to Board
    Assembly Type Wafer
    Pitch (mm) 1.00mm
    Product Series AL-X2201 series
    Configuration Features Number of Rows  1
    Number of Positions  2P~20P
    Electrical characteristics Operating Voltage (V AC/DC) 50
    Current(Max)(A) 1
    Contact Resistance 20mΩ Max
    Insulation Resistance 100MΩ Min
    Shell characteristics Housing Material Nylon 9T, UL94V-0
    Color  Ivory
    PIN Material Phosphor Bronze
    PIN Plating Tin over Nickel
    Environmental Info Operating Temperature Range (°C) -40℃~105℃
    Industry Standard UL/CUL E326732
