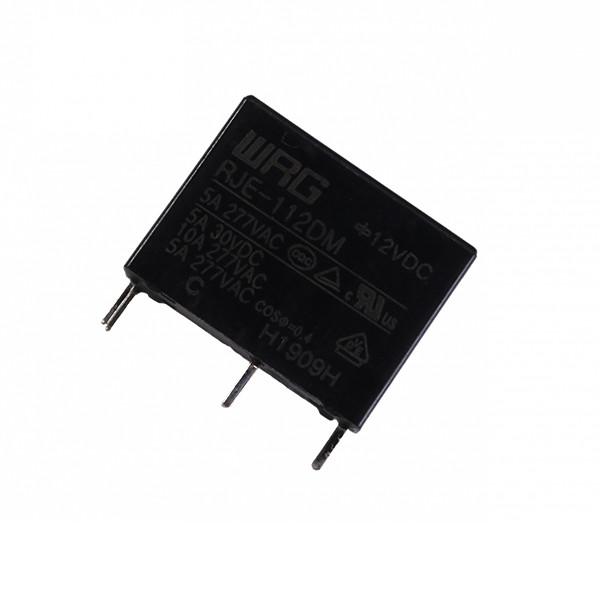

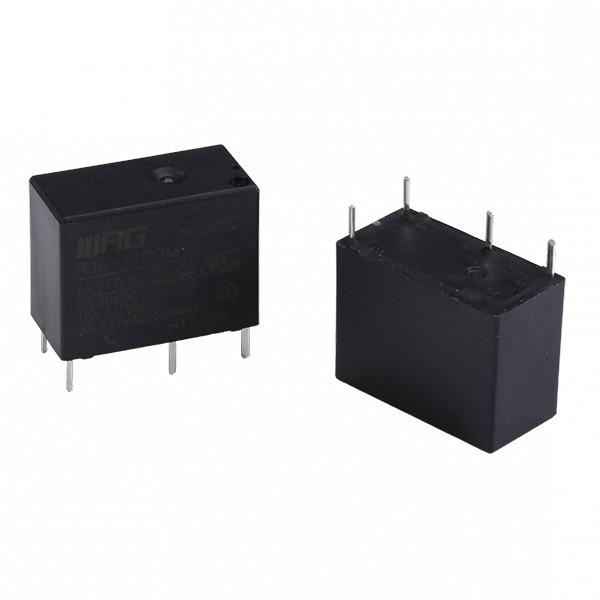

SPST 10A 12 Volt Class A Insulation RJE - 112DM PCB Mount Relay
SPST 10A 12 Volt Class A Insulation RJE - 112DM PCB Mount Relay
SPST 10A 12 Volt Class A Insulation RJE - 112DM PCB Mount Relay
SPST 10A 12 Volt Class A Insulation RJE - 112DM PCB Mount Relay
Specifications
Brand Name :
WRG
Model Number :
RJE-112DM
Certification :
TUV/CQC/UL/VDE
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
500k per month
Delivery Time :
5-8days
Packaging Details :
standard or customization
Keyword :
PCB Mount Relay
Coil input voltage :
12VDC
Coil power :
D type:400mW
Applications :
PLC controller
Contact material :
Ag alloy
Contact form :
1 Form A
Contact rating :
10A 125VAC,5A 277VAC,10A 30VDC
Certifications :
cULus:E345228/TUV:R50246903/CQC:CQC12002084196/VDE:40045973
Description

SPST 10A 12 Volt Class A Insulation RJE-112DM PCB Mount Relay

PCB Mount Relay Description:

RJE series power relays are the ones with small in size and lightweight, with small currents of 3A to 5A, not only 4KV dielectric withstand voltage,

but also meet with IEC60079-15 anti-explosion standard, safety system CQC/TUV/UL/VDE was approved as well.

PCB Mount Relay Features:

1. SPST,1 Form A

2. rated current 10A

3. 4KV dielectric withstand voltage between coil and contact

PCB Mount Relay FAQ:
Q: Why is WRG relay?
WRG relay was established in 2000, focusing on R&D, manufacturing, and sale of relays all the time. It has UL/VDE/TUV/CQC certifications and matches with RoHs demand. Products were chosen by Midea, Panasonic, Haier, META, etc. It is a stable and reliable supply for you.

Q: How is the after-sales service?
If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.

PCB Mount Relay Specification:

Contact data:
Contact Configuration 1 Form A
Contact material Ag alloy
Max. switching voltage 30VDC,277VAC
Max. switching power 2,770VA
Contact ratings 5A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC
Contact resistance Max. 100mΩ(1A/6VDC)
Mechanical endurance 1x107 times
Electrical endurance AC1 1x105 times

SPST 10A 12 Volt Class A Insulation RJE - 112DM PCB Mount Relay
