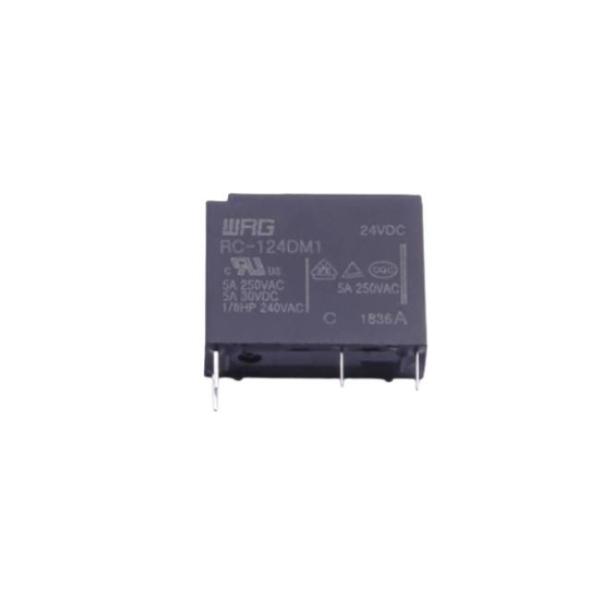

Ultra Thin 5A 24V SPST Relay 4 Pin 4KV Dielectric Withstand Micro Power RC-124DM1
Ultra Thin 5A 24V SPST Relay 4 Pin 4KV Dielectric Withstand Micro Power RC-124DM1
Specifications
Brand Name :
WRG
Model Number :
RC-124DM1
Certification :
TUV/CQC/UL/VDE
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
500k per month
Delivery Time :
5-8days
Packaging Details :
standard or customization
Keyword :
12V SPST Relay
Coil input voltage :
24VDC
Contact material :
Ag alloy
Contact rating :
5A 250VAC,5A 30VDC,1/8HP 240VAC
Dimension LxWxH(mm) :
19.8x9.9x15.2
Weight(g) :
7
Features :
1 form A,4pins
Mounting :
PCB
Description

Ultra Thin 5A 24V SPST Relay 4 Pin 4KV Dielectric Withstand Micro Power RC-124DM1

12V SPST Relay Description:
RC series is the one which with ultra-slim,7mm width only,3g weight miniature PCB mount power relay. Specially use for which products are small in size, or have a width limit. of 3A to 5A rated current.0.2W coil power, standard 1 form A and A type 1 form A, TUV/UL/CQC/VDE safety certifications, meanwhile, meet with anti-explosion standard, perfectly reply to small appliance...

12V SPST Relay Features:

1. small coil power

2. 1 form A,4pins

3. lightweight,3g
4. ultra-slim,7mm width
5. meet with IEC60079-15 anti-explosion standard

12V SPST Relay Applications:
household appliances: air conditioner, dishwasher, micro stove...


12V SPST Relay Specification:

Coil data
Coil input voltage 5/9/12/24VDC
Coil power 200mW
Response voltage DC:＞75％(Room temp.)
Drog out voltage DC:＜5％(Room temp.)
Operating time / Release time Less than 10ms/Less than 10ms

12V SPST Relay FAQ:
Q1: Why is WRG relay?
A1: WRG relay was established in 2000, focusing on R&D, manufacturing, and sale of relays all the time. It has UL/VDE/TUV/CQC certifications and matches with RoHs demand. Products were chosen by Midea, Panasonic, Haier, META, etc. It is a stable and reliable supply for you.

Q2: What is the delivery time like?
A2: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.
