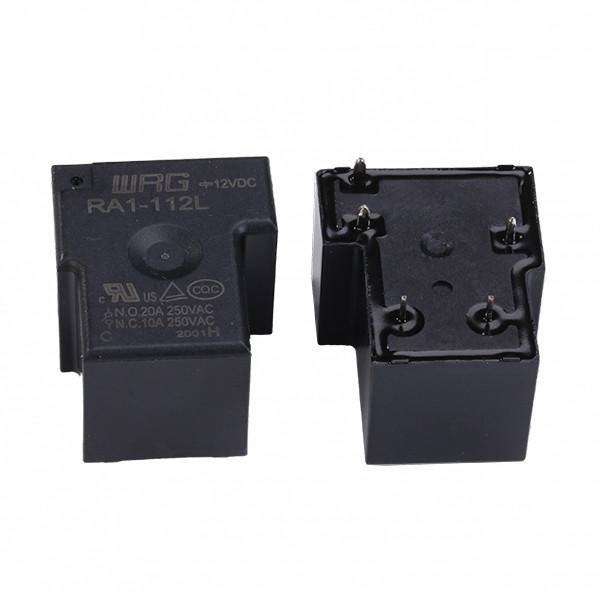

0.9W 5 Pin SPDT Power Relay 12V DC 20A 10A For Industry Control Home Appliance
0.9W 5 Pin SPDT Power Relay 12V DC 20A 10A For Industry Control Home Appliance
Specifications
Brand Name :
WRG
Model Number :
RA1-112L
Certification :
TUV/UL/CQC
Place of Origin :
China
MOQ :
100PCS
Payment Terms :
T/T
Supply Ability :
500K per month
Delivery Time :
4weeks
Packaging Details :
25pcs/box or customized package
Price :
negotiable
Keyword :
SPDT Power Relay
Coil input voltage :
5/8/9/12/22/24/48VDC
Coil power :
L type:900mW
Contact rated current :
1 Form A: 30A250VAC 1 Form C: NO.(20A250VAC)/NC.(10A250VAC,2HP240VAC)
Contact quantity :
1 Form A/C
Contact Material :
Ag allow
Dimension(L*W*H)mm :
32*27*20
Package :
25pcs/box or customization
Operate humidity :
20~ 85%
Environment temperature :
-40~ 85℃
Description

0.9W 5 Pin SPDT Power Relay 12V DC 20A 10A For Industry Control Home Appliance

SPDT Power Relay Description:

WRG's RA series is a high capacity, has good endurance, and with Anti-explosion standard general relay. multiple input voltage,4pin or 5pin

for options specially RA5xx has ensured enough insulation distance.

SPDT Power Relay Features:

1. 1 Form C(contact switching type.

2. Meet IEC60079-15 anti-explosion standard.

3. PCB mounting.


SPDT Power Relay Applications:

1. Various home appliances.

2. New energy, such as fast-charging stations for vehicles.

3. Industry control.

SPDT Power Relay Specification:

General data:

Rated withstand impulse voltage

coil contact

4kV AC/1min

between contact

1.5kV AC/1min

Surge voltage

4kV AC(1.2/50μs)

Insulation resistance

1000MΩ(500VDC)

Vibration

Fault 10-55Hz(amplitude 1.5mm)

Endurance 10-55Hz(amplitude 1.5mm)

Shock

Fault 98m/S2 Endurance 980m/S2

Operating temperature

-40 ~ 85℃(no condensation)

Operating humidity

20 ~ 85％

Dimension LxWxH(mm)

32.0x27.0x20.0

Enclosure type

Flux-resistance, sealed

Mounting

PCB

Weight(g)

26

Certifications

cULus:E345228/TUV:R50228669/CQC:CQC12002078691

For further datasheets, please click the link below or contact us.

RA Series.pdf
