Green Solder Mask Quick Turn PCB Boards BGA Impedance Control 1.2mm 5mil

Quick Turn PCB Boards Green Solder Mask Small BGA Impedance Control Fast Turn PCB PCB Fabrication

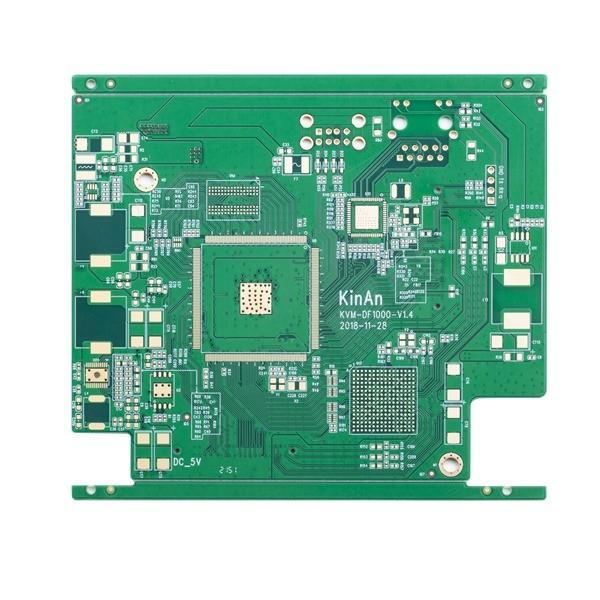

4 LAYER Quik turn Fast PCB

HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.

BGA Circuit Board Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
Min finish panel size: 5 * 5mm
PCB material: PI +FR4,FR4, Rogers
PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review) (Board thickness ≤ 0.6mm,do not apply for HASL surface)
copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max 3oz, advance 4-6oz
Bow and twist: 0.075%
Min. hole size: 0.15mm(＜0.15 mm needs to review)
HDI Min drill hole: 0.08-0.10MM
PCB track/gap: 3mil(0.075mm)
PCB outline: Routing/V-CUT/Punching
Solder mask thickness: standard 15-20um; Advanced: 35um
Min solder mask bridge width: green 4mil,other colour 4.8mil
Solder mask filling holes: 0.1-0.5mm
The color of solder mask: green,matt green,blue,matt blue,black,matt black,yellow,red,white,etc
PCB silkscreen: White, Black and as your request
Peelable mask thickness: 500-1000um
Oxidation film of OSP: 0.2-0.5um

FAQ:
Q1: How can I get a quotation?
A: Please send us gerber file with format Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB and provide the demand quantities. We will provide quotation accordingly.

Q2: Can you manufacture the PCBs from a picture file?
A: No. But if you can send us a sample PCB, we could clone its design and work it out.

Q3: Do you have PCB in stock.
A: Most of the PCB boards are customized, and they have different designs, we produce them according to the gerber files provided by customers.

Q4: What FR4 materials do you usually use?

A: Kingboard, ITEQ, Shengyi...

Q5:What kind of shipment way do you usually use?
A: For small volume order, we always suggest to ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
And for big volume order, to save freight cost, we will suggest to arrange the shipment by air or by sea, Of course, if you have your own forwarder and can provide us the information, we can contact them to arrange the shipment.
