UV Laser PCB Depaneling Machine with 460 * 460mm Working Area Optional 15W 17W 20W
UV Laser PCB Depaneling Machine with 460 * 460mm Working Area Optional 15W 17W 20W
Specifications
Brand Name :
ChuangWei
Model Number :
CWVC-5L
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
50 sets per month
Delivery Time :
5-7 days
Packaging Details :
plywood case
Color :
White
Laser power :
12/15W(optional)
Type :
UV
Working size :
460*460 mm
Size :
1480mm*1360mm *1412 mm
Precision :
±20 μm
Laser brand :
USA or Germany
Laser Wavelength :
355nm
Laser Scanning Speed :
2500mm/s (max)
Description :
UV Laser PCB Depaneling
Description

UV Laser PCB Depaneling Machine With 460 * 460mm Working Area Optional 15W 17W 20W Advantages

High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance

PCB Laser Depanl Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.

UV Laser PCB Depaneling Machine with 460 * 460mm Working Area Optional 15W 17W 20W UV Laser PCB Depaneling Machine with 460 * 460mm Working Area Optional 15W 17W 20W

UV Laser PCB Depaneling Parameter

Parameter

Technical parameters

 Main body of laser 1480mm*1360mm*1412 mm
Weight of machine 1500Kg
Power AC220 V
Laser 355 nm
Laser

Optowave 10W(US)
Material ≤1.2 mm
Precision ±20 μm
Positioning ±2 μm
Platform ±2 μm
Working area 460*460 mm(could be customized made)
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient ＜60 %
The Machine Marble

UV Laser PCB Depaneling Features

1. Neat and smooth edge, no burr or overflow

2. More quick and easy, shorten the delivery time

3. High quality ,no distortion,surface clean& uniformity;

4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed

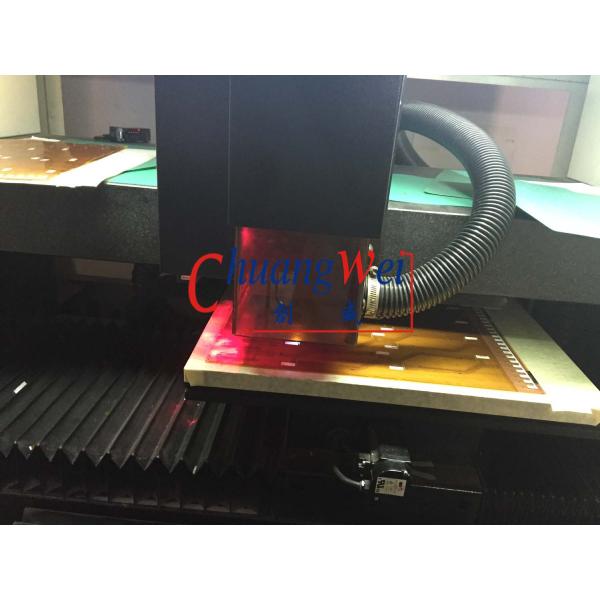

UV Laser PCB Depaneling Photo

UV Laser PCB Depaneling Machine with 460 * 460mm Working Area Optional 15W 17W 20W

More information welcome contact us:

Email/Skype: s5@smtfly.com

Mobile/Wechat/WhatsApp(Bunny): +86-136-8490-4990
