PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting
PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting
PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting
PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting
PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting
PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting
PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting
PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting
Specifications
Brand Name :
Chuangwei
Model Number :
CWVC-5S
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Supply Ability :
50 sets per month
Delivery Time :
5-7 days
Packaging Details :
plywood case
Price :
Negotiable
Color :
White
Laser :
15W(optional)
Type :
UV
Working size :
600*600 mm
Size :
1480mm*1360mm *1412 mm
Name :
PCB laser cutting machine
Description

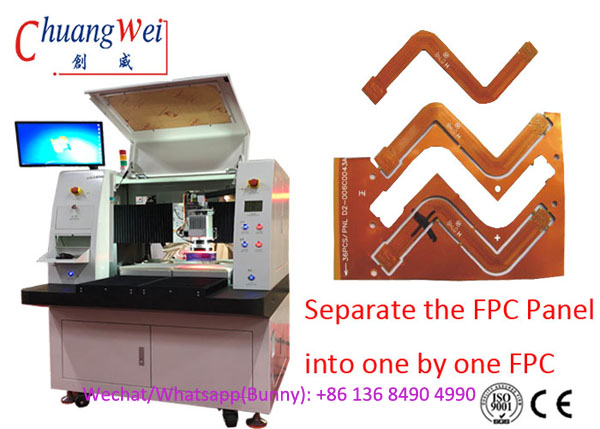

PCB Laser Cutting Machine with Imported America 15W UV Laser PCB Laser Cutting Machine Photos

PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting

PCB Laser Cutting Machine Parameter

Parameter







Technical parameters

 Main body of laser 1480mm*1360mm*1412 mm
Weight of the 1500Kg
Power AC220 V
Laser 355 nm
Laser

Optowave 10W(US)
Material ≤1.2 mm
Precision ±20 μm
Positioning ±2 μm
Platform ±2 μm
Working area 600*600 mm
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient ＜60 %
The Machine table Marble


PCB laser cutting machine Parameter Advantages

High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance

PCB laser cutting machine Cutting Application

FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

PCB laser cutting machine Cutting Samples

PCB Laser Cutting Machine Imported America 15W UV Laser PCB CuttingPCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting

PCB Laser Cutting Machine Imported America 15W UV Laser PCB CuttingPCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting

PCB Laser Cutting Machine Details:

PCB Laser Cutting Machine Imported America 15W UV Laser PCB Cutting

More information about this model ,welcome to contact us:


Skype: s5@smtfly.com
Mobile/Wechat/WhatsApp: +86-136-8490-4990
Contact: Bunny
