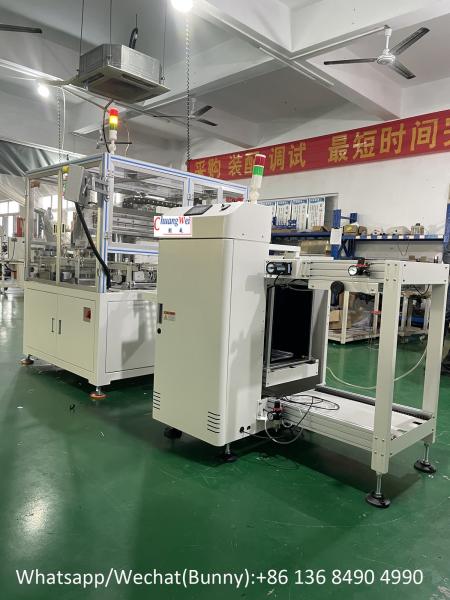

Inline PCBA V Groove PCB Depaneling Machine Automatic V Cut For FR4
Inline PCBA V Groove PCB Depaneling Machine Automatic V Cut For FR4
Inline PCBA V Groove PCB Depaneling Machine Automatic V Cut For FR4
Inline PCBA V Groove PCB Depaneling Machine Automatic V Cut For FR4
Specifications
Brand Name :
ChuangWei
Model Number :
CWVC-5
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
1USD/1set
Supply Ability :
30sets/month
Delivery Time :
8-15 days after payment
Packaging Details :
wooden case
PCB width :
300mm(could be customized)
Driven mode :
Stepping / Servo motor(optional)
V-cut angel :
>40°
Cutting speed :
300-500/s
Blade material :
High speed steel
Air pressure :
0.5-0.8Mpa
Voltage :
220/110V
Packaging weight :
300kgs
Blades Number :
Depend on PCB
Machine Color :
White
Description

Inline PCBA V-groove Depaneling Machine,Automatic PCB V-cut De-panel for FR4 with “#”Shape Description:

This is a double directions depaneling with horizontal and vertical boards;
to realize inline depaneling for shape panels at one time;
High automation, connect PCB loader and unloader, can be achieved without human, save
labor.
Touch screen operation, enabling quick product changing, PLC data storage
capacity is 100 programs.
One direction of depaneling is also workable, could set horizontal and vertical depaneling by
touch screen, more intelligent.
Dust cleaner is optional.
Inline PCBA V-groove Depaneling Machine,Automatic PCB V-cut De-panel for FR4 with “#”Shape Features:
※ Workable for "#" shape depaneling.1. Length of sub-board: 200mm in Y direction, 300mm in X direction;
Evaluation sample capacity: 3000/hour, defective rate 1‰;
Full pneumatic control, no noise;
The stroke is small, it is not easy to damage the product and the operation is complete;
Cut-out work, suitable for PCB of various thicknesses;
Minimize the internal stress generated when cutting the board to avoid tin cracks;
The distance between the upper and lower knives can be adjusted precisely, which avoids the loss of the knives due to the different depths of the V-groove.Automatic sub-board in both horizontal and vertical directions, which solves the need for a lot of well-shaped PCB processes that require secondary sub-boards.
Problems such as slow operation.
High degree of automation, can be connected to other equipment before and after, unmanned operation, saving labor
It can quickly replace PCB products of different sizes, and it only takes 5 minutes to replace the product, and the PLC data storage can reach 100 groups
The device can be set as a unidirectional sub-board, one machine is multi-purpose, and it is more intelligent.
Inline PCBA V-groove Depaneling Machine,Automatic PCB V-cut De-panel for FR4 with “#”Shape Parameter:
Blade dimension

Linear Blade: 356×43.5×6mm
PCB width 300mm(could be customized)
Driven mode Stepping / Servo motor(optional)
V-cut angel >40°
Cutting speed 300-500/s
Blade material High speed steel
Air pressure 0.5-0.8Mpa
Voltage 220/110V
Dimension 1250(1560)mm×800mm×1295mm
Packaging weight 300kgs

More information and working videos of this model machine, welcome to contact us:

Email/Skype: s5@smtfly.com

Mobile/Wechat/WhatsApp: +86-136-8490-4990
