Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency
Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency
Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency
Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency
Specifications
Brand Name :
HNL-PCBA
Model Number :
PCB Assembly 08
Certification :
ISO9001,IS16949, ISO14001,ROHS , UL, IPC-A , UL, QC080000
Place of Origin :
CHINA
MOQ :
3 PC
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
10,000,000 Point /Day
Delivery Time :
1-7days
Packaging Details :
ESD packaging with carton box
Product name :
HDI PCB Board
Material :
FR4, 94v0 Circuit Board
Copper thickness :
1OZ
Min. line spacing :
0.1mm＊0.1mm
Min. hole size :
Laser 0.05mm ; Mechnical 0.15mm
Service :
One-stop Service,PCB&PCBA,ODM and OEM
Board thickness :
1.6mm
solder mask :
Green
Number of layers :
4 Layers
DK :
1.24
Description

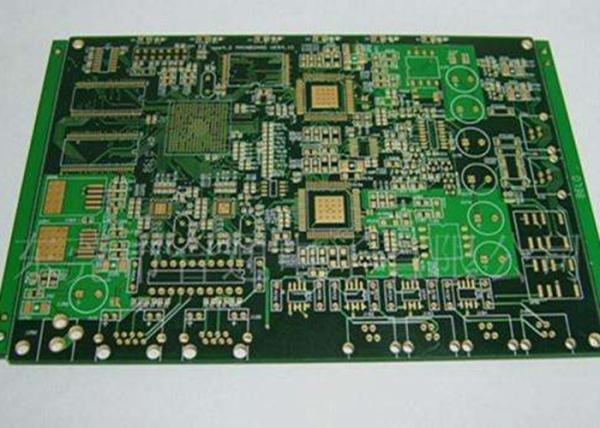

FR4 2.4mm 4-Layer Gold-plated high-frequency HDI PCB Board

HDI PCB Board Introduction

The High-Density Interconnect (HDI) Printed Circuit Boards is shorted as HDI PCB Board.

With little space between the PCB components, and making the board space smaller, at the same time the board functionally isn’t affected.

That is, a PCB with about 120 – 160 pins per square inch is an HDI PCB. All of the other electronic components are mounted on the printed circuit boards(PCBs),which are the foundation.

PCB CAPABILITIES

FACTORY CAPABILITIES
No. Items 2020
1 HDI Capabilities HDI ELIC(5+2+5)
2 Max layer count 46L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4 Min.Hole Size Laser 0.05mm
Mechnical 0.15mm
5 Min Line Width/Space 0.030mm/0.030mm
6 Copper Thickness 1/3oz-6oz
7 Size Max Panel size 700x610mm
8 Registration Accuracy +/-0.05mm
9 Routing Accuracy +/-0.05mm
10 Min.BGA PAD 0.125mm
11 Max Aspect Ratio 10:01
12 Bow and Twist 0.50%
13 Impedance Control Tolerance +/-5%
14 Daily output 4,000m2 (Max capacity of equipment)
15 Surface Finishing HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI

The types of HDI PCB


1.through vias from surface to surface,
2.with buried vias and through vias,
3.two or more HDI layer with through vias,
4.passive substrate with no electrical connection,
5.coreless construction using layer pairs
6.alternate constructions of coreless constructions using layer pairs.

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

Work flow for HDI

Board Cut - Inner Wet film -DES - AOI - Brown Oxido - Outer Layer Press - Out Layer Lamination - X-RAY & Rounting - Copper reduce & brown oxide - Laser Drilling - Drilling - Desmear PTH - Panel plating - Outer Layer dry film - Etching - AOI- Impedance Testing - S/M Pluged hole - Solder Mask - Component Mark - Impedance testing - Immersion Gold -V-cut - Routing - Electrical Test - FQC - FQA -Package -Shipment

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

Similar products

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

Delivery Time

Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD

HDI PCB Board Application Field

Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics etc.

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

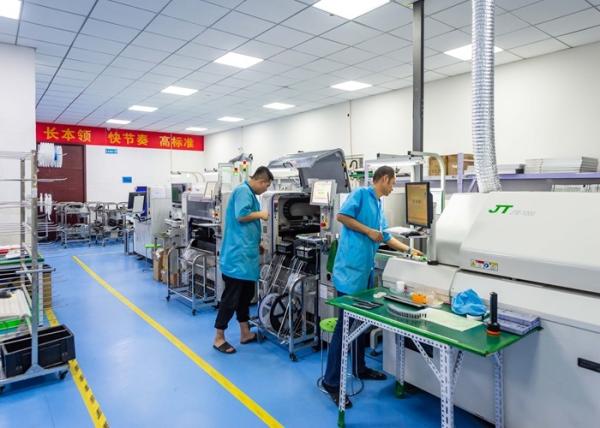

Workshop

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-FrequencyFr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

Common packaging

1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box

Fr4 Hdi Pcb Board 2.4mm 4-Layer Gold-Plated High-Frequency

FAQ

Q1:What kind of PCB file format can you accept for production?
Gerber, PROTEL 99SE, PROTEL DXP, CAM350, ODB+(.TGZ)

Q2:Is my PCB files safe when I submit them to you for manufacturing?

We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from you, nor we'll share these files with any other 3rd parties.

Q3:What payments do you accept ?
-Telex Transfer(T/T),Western Union,Letter of Credit(L/C)
-Paypal,AliPay,Credit Card

Q4:How to get the PCB?
A:For small packages, we will ship the boards to you by DHL,UPS,FedEx,EMS. Door to door service! You will get your PCBs at your home.
B:For heavy goods more than 300kg, we may ship your boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.

Q5:What is your minimum order quantity?
Our MOQ is 1 PCS.

Q6: Can we visit your company?

No problem. You are welcome to visit us in Beijing. Or the branch factory is in Tianjin.

Q7: How can you ensure the quality of the PCB?
Our PCBs are 100% test including Flying Probe Test, E-test and AOI.
