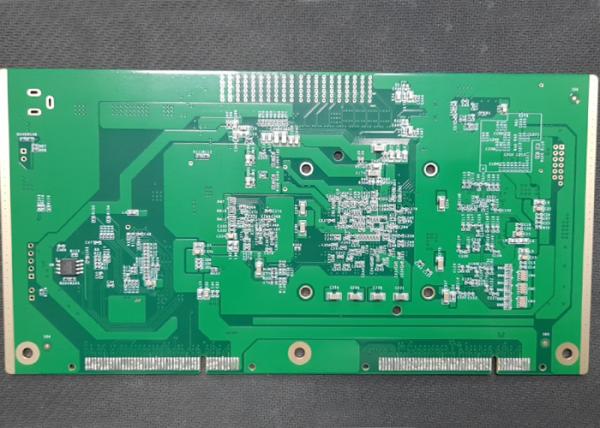

Custom FR4 ENIG Double Side PCB Assembly for Control Series Products

Double Side PCB Assembly Introduction

Double-sided PCB Assembly are mainly used for electronic computers with high electronic communication equipment requirements, advanced instruments, and performance. It is usually punched in the middle of the circuit board to connect the double-sided PCB board.

PCB CAPABILITIES

No. Items
1 HDI Capabilities HDI ELIC(5+2+5)
2 Max layer count 36L
3 Board Thickness Core thickness 0.05mm-1.5mm ,Fineshed board thickness0.3-3.5mm
4 Min.Hole Size Laser 0.05mm
Mechnical 0.15
5 Min Line Width/Space 0.030mm/0.030mm
6 Copper Thickness 1/3oz-6oz
7 Size Max Panel size 700x610mm
8 Registration Accuracy +/-0.05mm
9 Routing Accuracy +/-0.05mm
10 Min.BGA PAD 0.125mm
11 Max Aspect Ratio 10:01
12 Bow and Twist 0.50%
13 Impedance Control Tolerance +/-5%
14 Daily output 4,000m2 (Max capacity of equipment)
15 Surface Finishing ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16 Raw Material FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI

PCBA CAPABILITIES

PCBA Capability
Material type PCB Components
Item Dimension (Length, width,height. mm) Material Surface finish Chip&IC BGA Pitch QFP Pitch
Min 50*40*0.38 FR-4,CEM-1,CEM-3,Aluminium-based board,Rogers,ceramic plate,FPC HASL, OSP, Immersion gold, Flash Gold Finger 1005 0.3mm 0.3mm
Max 600*400*4.2 　 　

PCB Assembly Process

1.Solder Paste stenciling---2.Surface Mount Technology (Pick and Place)---3.Reflow Soldering---4.Inspection and Quality Control---5.Through-Hole Component Insertion (DIP Process)---6.Final Inspection and Functional Test

FR4 ENIG Double Side PCB Assembly , 3OZ Customized PCB Assembly

Our advantage

1.Service value

Independent quotation system to quickly serve the market

2.PCB manufacturing

High-tech PCB and PCB assembly production line

3.Material purchasing

A team of experienced electronic component procurement engineers

4.SMT post soldering

Dust-free workshop, high-end SMT patch processing

FR4 ENIG Double Side PCB Assembly , 3OZ Customized PCB Assembly

Double Side PCB Assembly Delivery Time

Product Type Qty Normal lead time Quick-turn lead time
SMT+DIP 1-50 1WD-2WD 8H
SMT+DIP 51-200 2WD-3WD 1.5WD
SMT+DIP 201-2000 3WD-4WD 2WD
SMT+DIP ≥2001 4WD-5WD 3WD
PCBA(2-4Layer) 1-50 2.5WD-3.5WD 1WD
PCBA(2-4Layer) 51-2000 5WD-6WD 2.5WD
PCBA(2-4Layer) ≥2001 ≥7WD 5WD
PCBA(6-10Layer) 1-50 3WD-4WD 2.5WD
PCBA(6-10Layer) 51-2000 7WD-8WD 6WD
PCBA(10-HDILayer) 1-50 7WD-9WD 5WD
PCBA(10-HDILayer) 51-2000 9WD-11WD 7WD

Why choose us?

1. We are the manufacturer/ factory; Welcome to visit us one day.

2. We have good quality control systems, including AOI, ISO 9001 etc. ;

3. All the material we use have the RoHS identify;

4. All the components we use are the New & Original;

5. One-stop service can be provided from PCB design, 1-36 layers PCB manufacturing, components sourcing, PCB Assembly, to Fully Product Assembly.

FR4 ENIG Double Side PCB Assembly , 3OZ Customized PCB Assembly

Double Side PCB Assembly Application Field

Printed circuit boards And PCB Assembly are mainly used for many communication industry, medical equipments, consumer electronics and automobile industry ,automotive electronics , audio and video, optoelectronics, robotics, hydroelectric power, aerospace, education, power supply, printer etc industries.

FR4 ENIG Double Side PCB Assembly , 3OZ Customized PCB Assembly

Our Workshop

FR4 ENIG Double Side PCB Assembly , 3OZ Customized PCB Assembly

FR4 ENIG Double Side PCB Assembly , 3OZ Customized PCB Assembly

Common packaging

1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box
