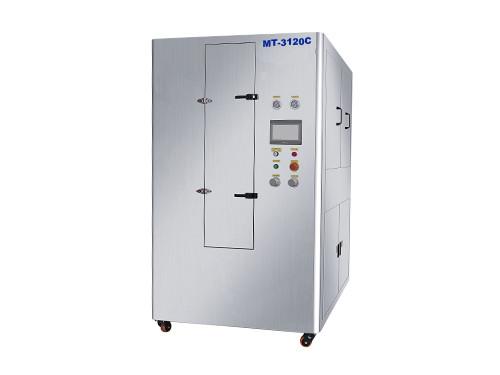

Na2Co3 aqueous solution PCB ink screen cleaning machine MT-3120C is an absolute solution for SMT printer stencil cleaning. MT-3120C PCB solder mask ink screen cleaning machine is a special machine designed for cleaning solder mask ink screens in the PCB industry. The MT- 3120C machine uses NACO3 aqueous solution to replace the traditional screen washing water and automatically cleans the solder mask ink screens. After cleaning with MT-3120C PCB solder mask ink screen cleaning machine, the ink screen can be rinsed using clean water, and use compressed air to blow off the water droplets on the surface of the screen to ensure that the surface of the screen and the screen holes are clean. MT-3120C solder mask cleaner adopts electrical integration, PLC control, and touch screen operation.

Features:

1. Special cleaning machine for solder mask ink screen in PCB industry.

2. Use Na2Co3 aqueous solution to clean, do not use washing water, cleaning cost-saving 90%

3. Safe cleaning, no flash point, no odor, improve the workshop environment, compound environmental protection requirements

4. The overall use of stainless steel body, acid and alkali corrosion, Strong and durable, beautiful appearance.

5. PLC control, touch screen operation, one-key operation, cleaning, rinsing, and drying are automatically completed according to the set time.

6. Use Na2Co3 aqueous solution for cleaning and clean water for rinsing.

7. Multi-stage precision filtration system, the solution is used cyclically.

8. Equipped with automatic liquid adding and draining system.

9. Reduce 10% printing defects, significantly improve printing quality, and reduce the probability of rework. The

Na2Co3 aqueous solution is used repeatedly.

Machine specifications:

MT-3120C specification

Maximum screen size: L1200 x W1200 x H40(mm)

Tank capacity: 60Lx2pcs

Cleaning time: 3~5min

Rinsing time: 1~2min

Drying time: 3~5min

Air consumption: 800~1000L/min

Gas source: 0.5~0.7Mpa

Exhaust port size: Φ124 × H30 (mm)

Filtering system: 1mm/100um/1um three-stage filtration

Work process: Cleaning + rinsing + compressed air drying

Machine size: L1260 x W1650 x H 2050(mm)

Machine weight: 630KG
