50*50mm 530*460mm PCB Board Handling Equipment For SMT Production Line
50*50mm 530*460mm PCB Board Handling Equipment For SMT Production Line
Specifications
Brand Name :
INFITEK
Model Number :
B-QXD02-XL-TN
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
wooden box
Application :
SMT Production Line Automatic PCB Cleaner
Description :
PCB Cleaning Machine
Brand :
INFITEK
Model :
B-QXD02-XL-TN
Features :
for 50*50-530*460 PCB Sizes
Warranty :
1 Year Warranty
Reliability :
for Industrial use
Packaging :
Wooden crate/box
Description

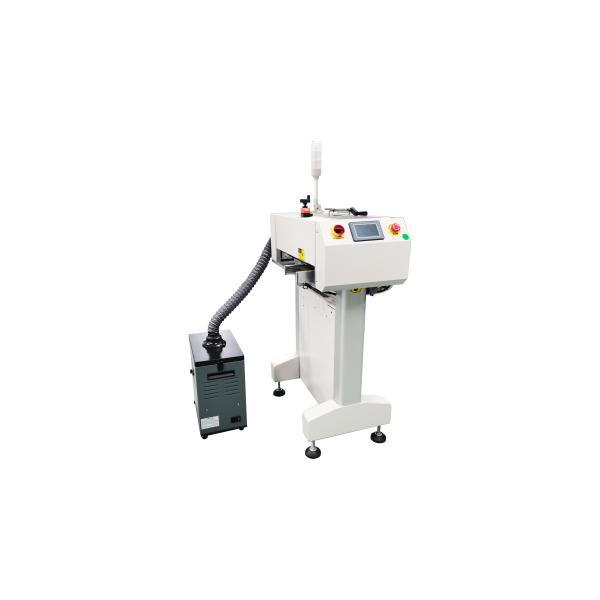

50*50mm 530*460mm PCB Cleaning Machine For SMT Production Line

PCB Cleaning Machine, SMT Production Line Automatic PCB Cleaner, 50*50mm-530*460mm PCB Size

INFITEK PCB Cleaning Machine is an online SMT Production Line Equipment used for cleaning the PCB surface from dirt, dust, oil, and other foreign objects that may cause static electricity from its surface. This Automatic PCB Cleaning Machine is designed with multiple dust removal parts, an ion air rod (blowing ion air) +1 group of spiral brushes + a vacuum system +1 group of dust sticking drums + vacuum dust collection, the dust removal efficiency can reach 99%. INFITEK PCB Auto Cleaning Machine is easy to operate and uses a touch screen controller. Design with an enclosed body to ensure operational safety level. INFITEK PCB Cleaning Machine is applicable to PCB with a size range from 50*50mm to 530*460mm.

Features:

  • Touch screen controller, easy to operate
  • Parallel and smooth width adjustment (lead screw)
  • Multiple dust removal design: ion air rod (blowing ion air) +1 group of spiral brushes + vacuum system +1 group of dust sticking drum + vacuum dust collection, the dust removal efficiency can reach 99%
  • The fully enclosed design ensures operational safety level
  • Smaller footprint
  • With SMEMA port

TECHNICAL PARAMETERS
Description This machine is used to remove the dirt from the PCB surface to eliminate static electricity
Speed 0-9m/min adjustable
Power supply AC1P110V/220V
Power Max 300VA
PCB thickness 0.6-5mm
Air pressure 4-6bar,10ltr/min max
Transport height 900±20mm (or customized)
Transport direction From left to right or right to left

SPECIFICATIONS
Model Dimension (L*W*H MM) PCB size (MM) Weight (KG)
B-QXD02-XL-TN 500*770*1114 50*50-530*460 100
