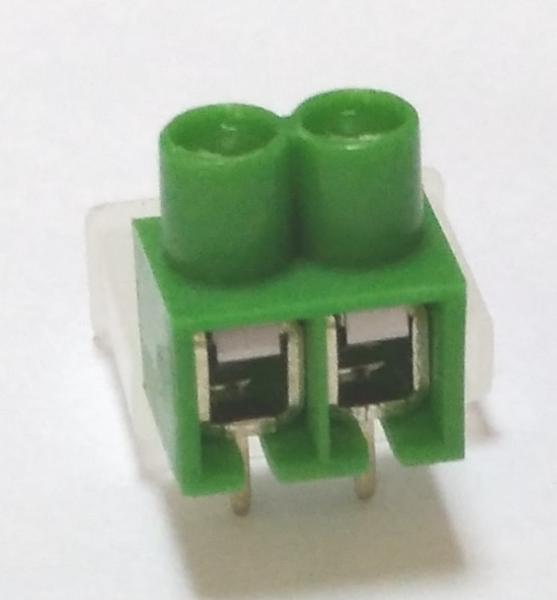

RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block
Specifications
Place of Origin :
China
Brand Name :
NO MARK
Certification :
UL CE
Model Number :
2-24P
MOQ :
Negotiation
Price :
0.6
Packaging Details :
200pcs per inner box
Delivery Time :
7 days after get deposit
Payment Terms :
T/T
Supply Ability :
1000PCS PER DAY
Rated Voltage :
300V
Rated Current :
10A
Type :
Electrical Plug
Grounding :
Standard Grounding
Application :
Industrial
Description

Material:
Pitch:5.0mm
Poles: 2-24P,
Screw: M3 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 400V
Rated current: 15A
With standing voltage: AC2000V/1min
Wire range: 18-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.5Nm(4.4 lb in)
Strip length: 6-7mm

RD TY -5.0 2P-24P 400V 15A green or gray or white color PCB screw terminal block

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
