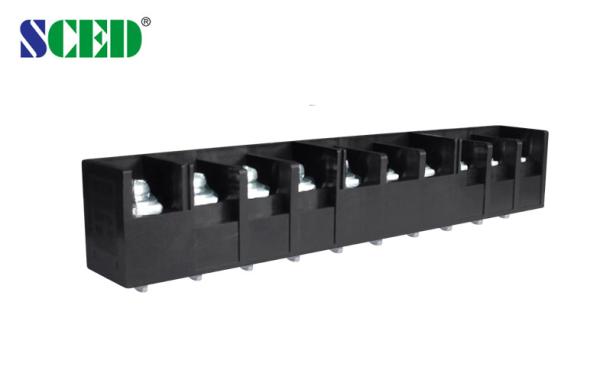

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block
Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE, CQC
Model Number :
TB2000-04
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Description

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 75 600 / 75 600 / 5
Wire Range AWG 26-4 26-4 26-4
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 1000 / 75 1000 / 75 1000 / 75
Rated Surge Voltage KV 12 12 12
Rated Connecting Capacity mm2 16
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4x8.4
Stripping Length mm 16-18
Screw / Torque / lbf.in M6 / 20-22

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block
