10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
Specifications
Brand Name :
Shenzhen, China
Model Number :
SCED
Certification :
UL, CE
Place of Origin :
TB1000-01
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Pitch :
10.00mm
Housing :
PBT
Terminal :
Brass
Rated voltage :
300V
Rated current :
20A
Sample :
free
Description

10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets

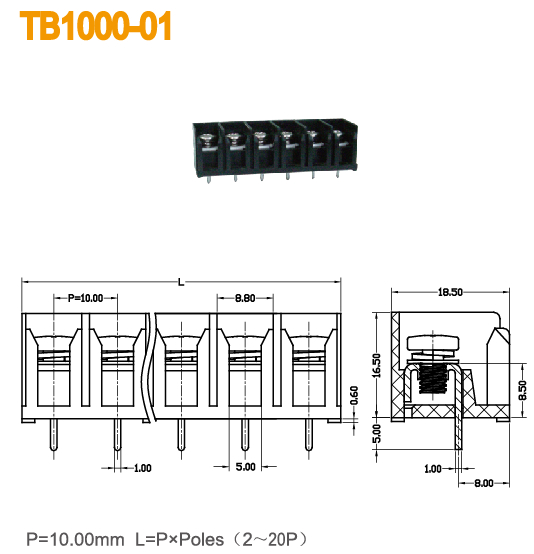

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

300 / 10

Wire Range AWG

16-24

16-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

500 / 17.5

630 / 17.5

8000 / 17.5

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.8

Stripping Length mm

9-10

Screw / Torque / lbf.in

M 4 / 10-12

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Applications:

PCB, Frequency Converters, Server Site, Switch,

Power Supply, Electric Lighting, Industry Control, Automation,

Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets

10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets
