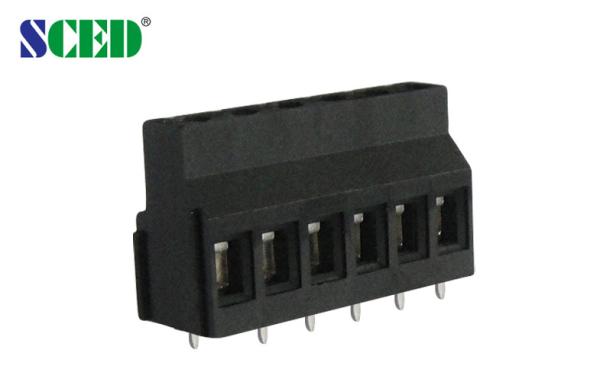

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Specifications
Brand Name :
SCED
Model Number :
TJ508-18
Certification :
UL, CE, CUL, CQC and VDE etc.
Place of Origin :
Guangdong, China
MOQ :
1000 Piece/Pieces
Price :
USD 0.051-0.120 Per Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Wire Range :
12-24 AWG
Poles :
2-24 poles
Screw :
M3 Steel
Pitch :
5.08mm
Current :
10A
Voltage :
300V
Insulation Material :
PA66
Inflammability Class :
UL94-V0
Torque :
4.4-5.3 lbf.in
Stripping Length :
6-7mm
Description

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG

Applications:

Our products can be used in lots of fileds and industries, such as

1.Power Supply, Communication, Industrial Control, Automation

2.PCB, Electronics, Electric Lighting, Frequency Converters

3. Military, Medical Equipment, Rail Transportation, Security and so on.

Detailed product Description:

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

Wire Inlet:■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Decks:■Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 10 300 / 10
Wire Range AWG 12-26 12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3

Competitive Advantage:

  1. More than 1000 models
  2. OEM and ODM service
  3. High quality and competitive price
  4. Good service

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
